TPS511 Series
Manufacturer: Texas Instruments
Beta
⌘K

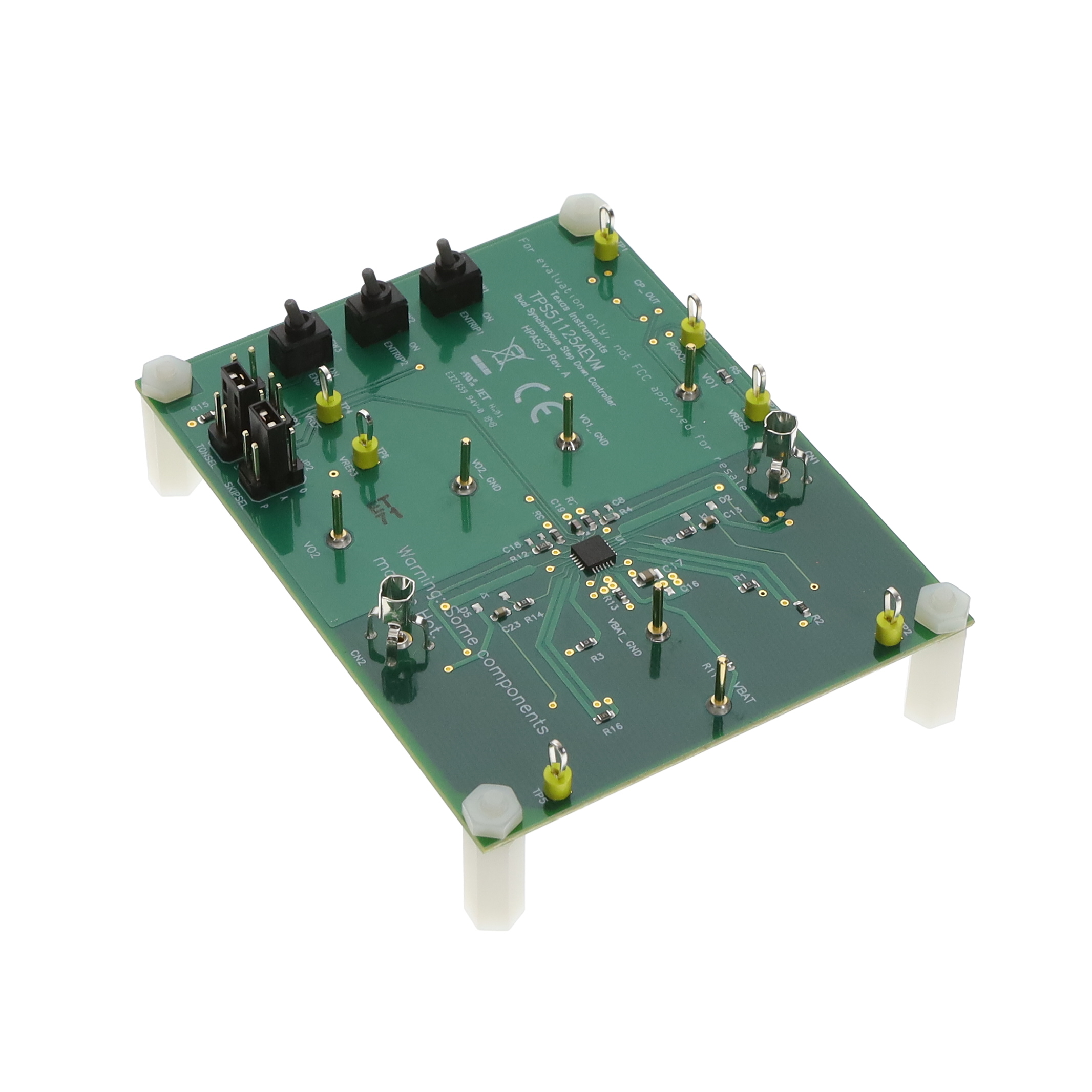

EVAL MODULE FOR TPS51125A
| Part | Supplied Contents | Board Type | Total Output Count | Output Type | Non-Isolated Output Count | Utilized IC / Part | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Frequency - Switching | Regulator Topology | Current - Output (Max) | Current - Output (Min) | Voltage - Output | Contents | Main Purpose | Channels per IC (Dual) | Channels per IC (Type) | Channels per IC (Count) | Regulator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Fully Populated | 2 | Non-Isolated | 2 count | TPS51125A | 25 V | 8 V | 245 kHz 305 kHz | Buck | 8 A | 8 A | 3.3 V 5 VDC | Board | DC/DC Step Down | ||||
 Texas Instruments | Board(s) | Fully Populated | TPS51103 | 28 V | 5.5 V | 100 mA | 100 mA | 3.3 V 5 VDC | Board | 2 | Dual | 2 | Positive Fixed |
