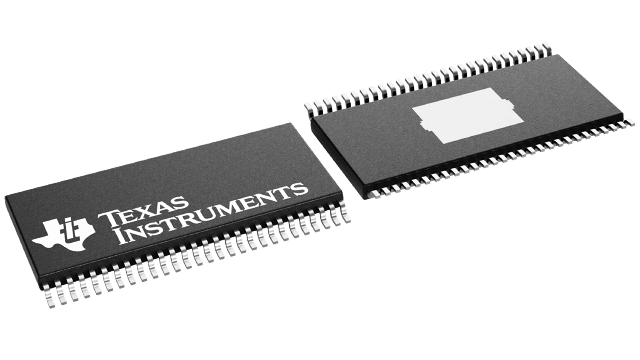

TLC5955 Series
Manufacturer: Texas Instruments
Beta
⌘K
48CH, 16BIT PWM LED DRIVER WITH DOT-CORRECTION, BRIGHTNESS CONTROL, OPEN/SHORT DETECTION
| Part | Number of Outputs | Package Name | Package Length | Package Width | Voltage - Supply (Min) | Current - Output / Channel | Type | Mounting Type | Topology | Applications | Voltage - Supply (Max) | Voltage - Output | Operating Temperature (Max) | Operating Temperature (Min) | Dimming | Internal Switch(s) | Current - Output / Channel (Channel 1) | Current - Output / Channel (Channel 2) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 48 | 56-HTSSOP 56-PowerTFSOP | 0.24 in | 6.1 mm | 3 V | 30 mA | Linear | Surface Mount | Shift Register | Signage | 5.5 V | 10 V | 85 °C | -40 °C | Analog | Yes | |||
Texas Instruments | 48 | 56-HTSSOP 56-PowerTFSOP | 0.24 in | 6.1 mm | 3 V | 30 mA | Linear | Surface Mount | Shift Register | Signage | 5.5 V | 10 V | 85 °C | -40 °C | Analog | Yes | |||
 Texas Instruments | 48 | 56-QFN | 8 mm | 8 mm | 3 V | Linear | Surface Mount | Shift Register | Signage | 5.5 V | 10 V | 85 °C | -40 °C | Yes | 23.9 mA | 31.9 mA | 56-VFQFN Exposed Pad | ||
 Texas Instruments | 48 | 56-QFN | 8 mm | 8 mm | 3 V | Linear | Surface Mount | Shift Register | Signage | 5.5 V | 10 V | 85 °C | -40 °C | Yes | 23.9 mA | 31.9 mA | 56-VFQFN Exposed Pad |
