LMZ10500 Series

Catalog

DC DC CONVERTER 0.6-3.6V

Part	Type	Current - Output (Max)	Features	Efficiency	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Control Features	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Voltage - Input (Min)	Voltage - Input (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Package / Case	Number of Outputs	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Supplied Contents	Frequency - Switching	Voltage - Output	Regulator Topology	Current - Output	Utilized IC / Part	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Main Purpose	Package Name
Texas Instruments LMZ10500SHX/NOPB	Non-Isolated PoL Module	650 mA	OCP OTP UVLO	95 %	ITE (Commercial)	125 °C	-40 °C	Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in	8-SMD Module	1

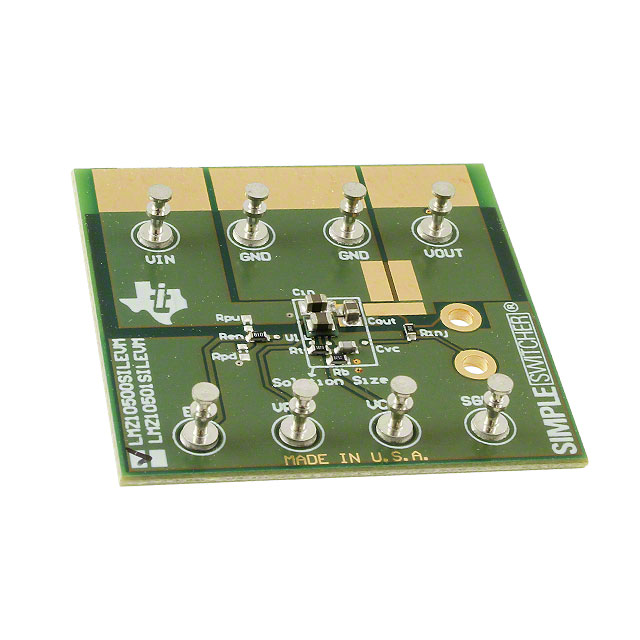

Texas Instruments LMZ10500SILEVM																			1	Non-Isolated	1 count	Fully Populated	Board(s)	2 MHz	1.8 V	Buck	650 mA	LMZ10500	Board	2.7 V	5.5 V	DC/DC Step Down
Texas Instruments LMZ10500SH/NOPB	Non-Isolated PoL Module	650 mA	OCP OTP UVLO	95 %	ITE (Commercial)	125 °C	-40 °C	Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in	8-SMD Module	1
Texas Instruments LMZ10500SEX/NOPB	Non-Isolated PoL Module	650 mA	UVLO	95 %	ITE (Commercial)			Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in	8-SMD Module	1
Texas Instruments LMZ10500SE/NOPB	Non-Isolated PoL Module	650 mA	OCP OTP UVLO	95 %	ITE (Commercial)	125 °C	-40 °C	Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in	8-SMD Module	1
Texas Instruments LMZ10500SILR	Non-Isolated PoL Module	650 mA	OCP OTP SCP UVLO	95 %	ITE (Commercial)	125 °C	-40 °C	Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in	8-LDFN Exposed Pad Module	1															8-uSIP
Texas Instruments LMZ10500SILT	Non-Isolated PoL Module	650 mA	OCP OTP UVLO	95 %	ITE (Commercial)	125 °C	-40 °C	Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.03 in	0.12 in	0.1 in	8-LDFN Exposed Pad Module	1															8-uSIP
Texas Instruments LMZ10500EVAL/NOPB																			1	Non-Isolated	1 count	Fully Populated	Board(s)	2 MHz	1.8 V	Buck	650 mA	LMZ10500	Board	2.7 V	5.5 V	DC/DC Step Down
Texas Instruments LMZ10500SHE/NOPB	Non-Isolated PoL Module	650 mA	OCP OTP SCP UVLO	95 %	ITE (Commercial)	125 °C	-40 °C	Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in		1
Texas Instruments LMZ10500SEE/NOPB	Non-Isolated PoL Module	650 mA	UVLO	95 %	ITE (Commercial)			Surface Mount	Active High Enable	0.6 V	3.6 V	2.7 V	5.5 V	0.06 in	0.12 in	0.1 in	8-SMD Module	1
