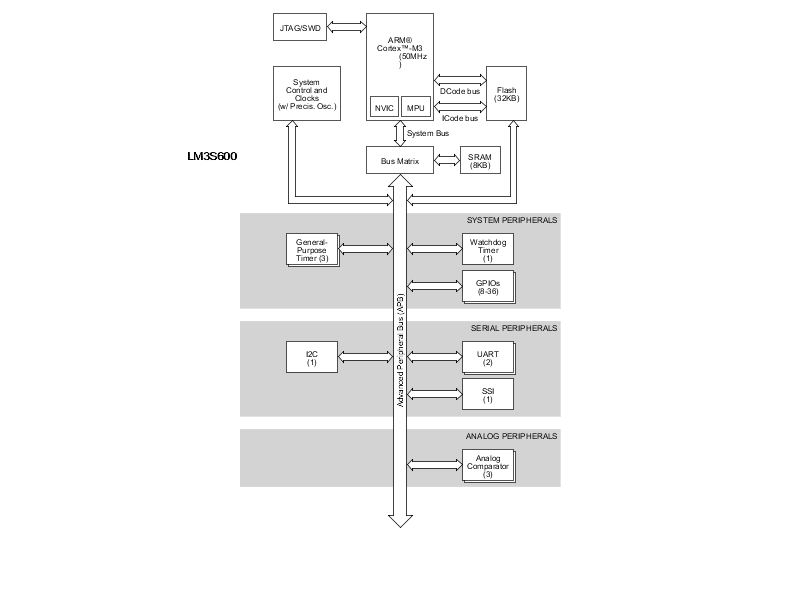

LM3S600 Series

Catalog

IC MCU 32BIT 32KB FLASH 48LQFP

Part	Program Memory Type	Oscillator Type	Mounting Type	Peripherals	RAM Size Width	RAM Size Depth	Program Memory Size	Program Memory Width	Program Memory Depth	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Core Size (Bit Width)	Connectivity	Speed	Package Length	Package Name	Package Width	Number of I/O	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Core Processor	Core Configuration
Texas Instruments LM3S600-IQN50-C2	FLASH	Internal	Surface Mount	Brown-out Detect POR PWM Reset WDT	8 bit	8 K	32 KB	8 bit	32 K	85 °C	-40 °C	48-LQFP	32 Bit	I2C Microwire SPI SSI UART USART	50 MHz	7 mm	48-LQFP	7 mm	36	3.6 V	3 V	ARM® Cortex®-M3	Single-Core
Texas Instruments LM3S600-EQN50-C2T	FLASH	Internal	Surface Mount	Brown-out Detect POR PWM Reset WDT	8 bit	8 K	32 KB	8 bit	32 K	105 °C	-40 °C	48-LQFP	32 Bit	I2C Microwire SPI SSI UART USART	50 MHz	7 mm	48-LQFP	7 mm	36	3.6 V	3 V	ARM® Cortex®-M3	Single-Core
Texas Instruments LM3S600-IQN50-C2T	FLASH	Internal	Surface Mount	Brown-out Detect POR PWM Reset WDT	8 bit	8 K	32 KB	8 bit	32 K	85 °C	-40 °C	48-LQFP	32 Bit	I2C Microwire SPI SSI UART USART	50 MHz	7 mm	48-LQFP	7 mm	36	3.6 V	3 V	ARM® Cortex®-M3	Single-Core
Texas Instruments LM3S600-IGZ50-C2T	FLASH	Internal	Surface Mount	Brown-out Detect POR PWM Reset WDT	8 bit	8 K	32 KB	8 bit	32 K	85 °C	-40 °C	48-VFQFN Exposed Pad	32 Bit	I2C Microwire SPI SSI UART USART	50 MHz	7 mm	48-VQFN	7 mm	36	3.6 V	3 V	ARM® Cortex®-M3	Single-Core
Texas Instruments LM3S600-EGZ50-C2T	FLASH	Internal	Surface Mount	Brown-out Detect POR PWM Reset WDT	8 bit	8 K	32 KB	8 bit	32 K	105 °C	-40 °C	48-VFQFN Exposed Pad	32 Bit	I2C Microwire SPI SSI UART USART	50 MHz	7 mm	48-VQFN	7 mm	36	3.6 V	3 V	ARM® Cortex®-M3	Single-Core
Texas Instruments LM3S600-EGZ50-C2	FLASH	Internal	Surface Mount	Brown-out Detect POR PWM Reset WDT	8 bit	8 K	32 KB	8 bit	32 K	105 °C	-40 °C	48-VFQFN Exposed Pad	32 Bit	I2C Microwire SPI SSI UART USART	50 MHz	7 mm	48-VQFN	7 mm	36	3.6 V	3 V	ARM® Cortex®-M3	Single-Core
