LM3242 Series
Manufacturer: Texas Instruments
Beta
⌘K

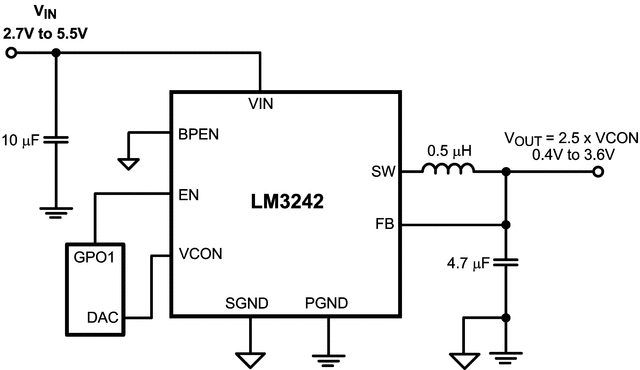

6MHZ, 750MA MINIATURE, ADJUSTABLE, STEP-DOWN DC-DC CONVERTER WITH BYPASS
| Part | Applications | Package / Case | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Mounting Type | Current - Supply | Total Output Count | Output Type | Non-Isolated Output Count | Supplied Contents | Board Type | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Main Purpose | Contents | Regulator Topology | Voltage - Output (Min) | Voltage - Output (Max) | Utilized IC / Part | Frequency - Switching | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Portable Equipment | 9-WFBGA DSBGA | 9-DSBGA | 90 °C | -30 °C | 5.5 V | 2.7 V | Surface Mount | 60 µA | |||||||||||||||

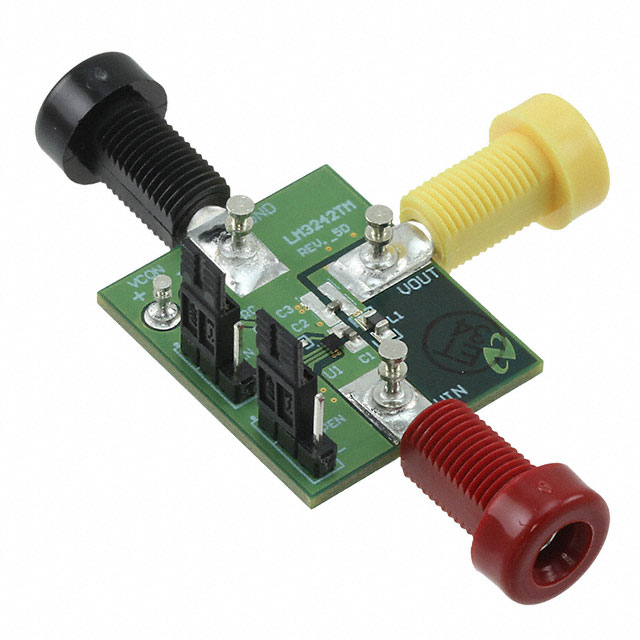

 Texas Instruments | 1 | Non-Isolated | 1 count | Board(s) | Fully Populated | 2.7 V | 5.5 V | DC/DC Step Down | Board | Buck | 0.4 V | 3.6 V | LM3242 | 6 MHz | 750 mA | |||||||||
Texas Instruments | Portable Equipment | 9-WFBGA DSBGA | 9-DSBGA | 90 °C | -30 °C | 5.5 V | 2.7 V | Surface Mount | 60 µA |
