ADS5402 Series

Catalog

DUAL-CHANNEL, 12-BIT, 800-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Package Name	Package Length	Package Width	Mounting Type	Number of A/D Converters	Features	Configuration	Data Interface	Sampling Rate (Per Second)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Min)	Input Type	Number of Inputs	Number of Bits	Architecture	Reference Type	Package / Case	Ratio - ADC	Ratio - S/H	Operating Temperature (Min)	Operating Temperature (Max)	Supplied Contents	Power (Typ)	Contents	Input Voltage (Value)	Utilized IC / Part
Texas Instruments ADS5402IZAYR	196-NFBGA	12 mm	12 mm	Surface Mount	2 count	Simultaneous Sampling	S/H-ADC	Parallel	800 MHz	1.7 V	1.9 V	1.9 V	3.45 V	3.15 V	1.7 V	Differential	2	12 bits	Pipelined	External Internal	196-LFBGA	1	1	-40 °C	85 °C
Texas Instruments ADS5402IZAY	196-NFBGA	12 mm	12 mm	Surface Mount	2 count	Simultaneous Sampling	S/H-ADC	Parallel	800 MHz	1.7 V	1.9 V	1.9 V	3.45 V	3.15 V	1.7 V	Differential	2	12 bits	Pipelined	External Internal	196-LFBGA	1	1	-40 °C	85 °C

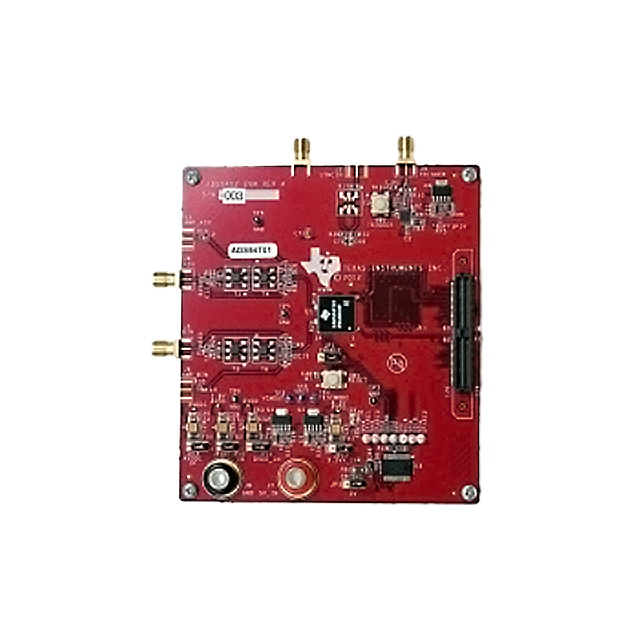

Texas Instruments ADS5402EVM					2 count			DDR LVDS	800 MHz									12 bits								Board(s)	2.18 W	Board	1 Vpp	ADS5402
