SN74ACT374 Series

Octal D-Type Edge-Triggered Flip-Flops With 3-State Outputs

Catalog

Octal D-Type Edge-Triggered Flip-Flops With 3-State Outputs

Part	Package Name	Number of Elements	Number of Bits per Element	Function	Input Capacitance	Current - Quiescent (Iq)	Trigger Type	Package Length	Package Width	Clock Frequency	Type	Max CL	Max Propagation Delay	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Type	Current - Output Low	Current - Output High	Mounting Type
Texas Instruments SN74ACT374DW	20-SOIC	1	8 bits	Standard	4.5 pF	4 µA	Positive Edge	0.295 in	7.5 mm	160 MHz	D-Type	50 pF	8.5 ns	85 °C	-40 °C	5.5 V	4.5 V	Non-Inverted Tri-State	24 mA	24 mA	Surface Mount
Texas Instruments SN74ACT374N	20-DIP 20-PDIP	1	8 bits	Standard	4.5 pF	4 µA	Positive Edge	0.3 in	7.62 mm	160 MHz	D-Type	50 pF	10 ns	85 °C	-40 °C	5.5 V	4.5 V	Non-Inverted Tri-State	24 mA	24 mA	Through Hole

Catalog

Octal D-Type Edge-Triggered Flip-Flops With 3-State Outputs

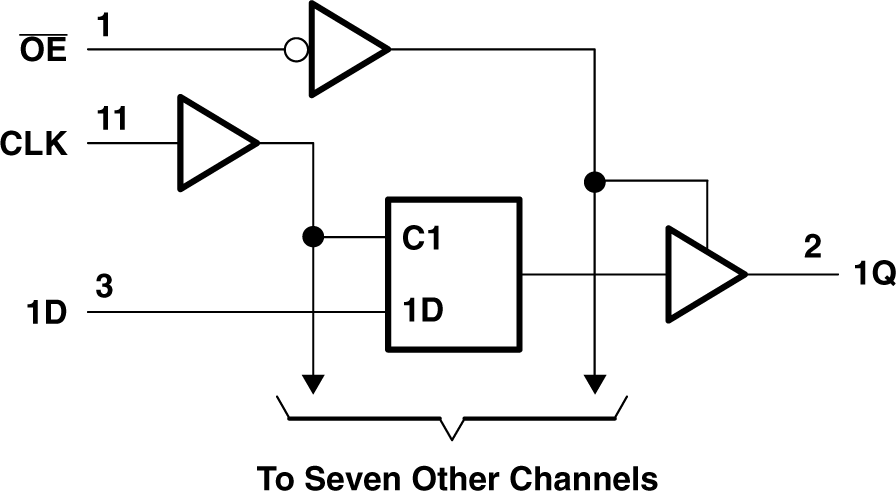

Description

These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
