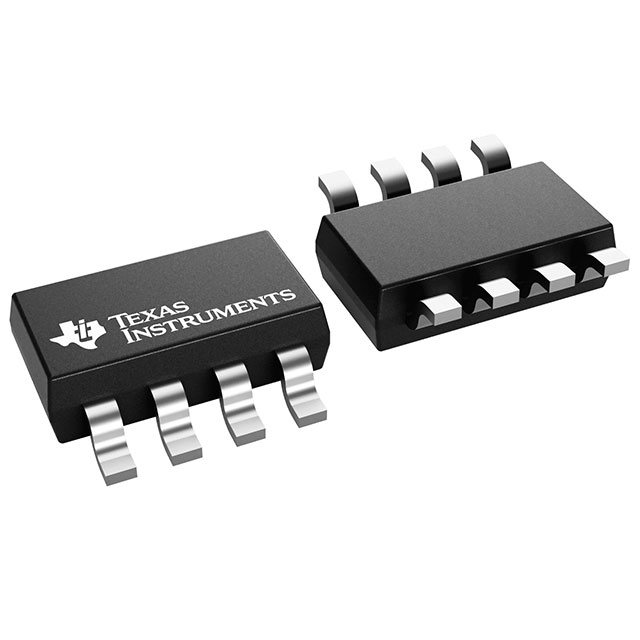

INA190-Q1 Series
Manufacturer: Texas Instruments
Beta
⌘K
AEC-Q100, 40V, BI-DIRECTIONAL, ULTRA-PRECISE CURRENT SENSE AMPLIFIER W/PICOAMP IB & ENABLE
| Part | Current - Input Bias | Package / Case | Output Type | Voltage - Input Offset | Amplifier Type | Mounting Type | Grade | Current - Supply | Number of Circuits | Package Name | Voltage - Supply Span (Min) | Slew Rate | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply Span (Max) | -3db Bandwidth | Qualification | Gain Bandwidth Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 500 pA | SOT-23-8 Thin TSOT-23-8 | Rail-to-Rail | 3 µV | Current Sense | Surface Mount | Automotive | 48 µA | 1 | TSOT-23-8 | 1.7 V | 0.3 V/µs | 125 °C | -40 °C | 5.5 V | 33 kHz | AEC-Q100 | |
Texas Instruments | 500 pA | SOT-23-8 Thin TSOT-23-8 | Rail-to-Rail | 3 µV | Current Sense | Surface Mount | Automotive | 48 µA | 1 | TSOT-23-8 | 1.7 V | 0.3 V/µs | 125 °C | -40 °C | 5.5 V | 35 kHz | AEC-Q100 | |
 Texas Instruments | 500 pA | SOT-23-8 Thin TSOT-23-8 | Rail-to-Rail | 3 µV | Current Sense | Surface Mount | Automotive | 48 µA | 1 | TSOT-23-8 | 1.7 V | 0.3 V/µs | 125 °C | -40 °C | 5.5 V | 27 kHz | AEC-Q100 | 27 kHz |
 Texas Instruments | 500 pA | SOT-23-8 Thin TSOT-23-8 | Rail-to-Rail | 3 µV | Current Sense | Surface Mount | Automotive | 48 µA | 1 | TSOT-23-8 | 1.7 V | 0.3 V/µs | 125 °C | -40 °C | 5.5 V | 45 kHz | AEC-Q100 |
