ADS800 Series

12-Bit, 40 MSPS ADC SE/Diff inputs. Internal References, pin compatible to ADS801/2

Catalog

12-Bit, 40 MSPS ADC SE/Diff inputs. Internal References, pin compatible to ADS801/2

Part	Architecture	Mounting Type	Sampling Rate (Per Second)	Data Interface	Number of Bits	Number of Inputs	Reference Type	Number of A/D Converters	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Analog	Configuration	Voltage - Supply, Digital	Input Type	Package Width	Package Name	Package Length	Ratio - ADC	Ratio - S/H
Texas Instruments ADS800U	Pipelined	Surface Mount	40 MHz	Parallel	12 bits	1	External Internal	1 count	-40 °C	85 °C	5 V	S/H-ADC	5 V	Differential Single Ended	7.5 mm	28-SOIC	0.295 in
Texas Instruments ADS800E/1K		Surface Mount	40 MHz	Parallel	12 bits			1 count	-40 °C	85 °C					5.3 mm	28-SSOP	0.209 in
Texas Instruments ADS800U	Pipelined	Surface Mount	40 MHz	Parallel	12 bits	1	External Internal	1 count	-40 °C	85 °C	5 V	S/H-ADC	5 V	Differential Single Ended	7.5 mm	28-SOIC	0.295 in	1	1
Texas Instruments ADS800U/1K	Pipelined	Surface Mount	40 MHz	Parallel	12 bits	1	External Internal	1 count	-40 °C	85 °C	5 V	S/H-ADC	5 V	Differential Single Ended	7.5 mm	28-SOIC	0.295 in	1	1

Catalog

12-Bit, 40 MSPS ADC SE/Diff inputs. Internal References, pin compatible to ADS801/2

Description

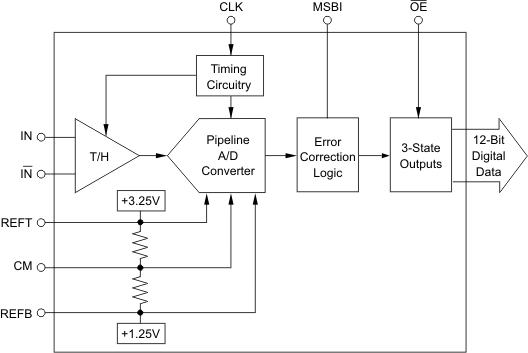

The ADS800 is a low power, monolithic 12-bit, 40MHz Analog-to-Digital (A/D) converter utilizing a small geometry CMOS process. This complete converter includes a 12-bit quantizer, wideband track/hold, reference and three-state outputs. It operates from a single +5V power supply and can be configured to accept either differential or single-ended input signals. The ADS800 employs digital error correction to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR and high oversampling capability give it the extra margin needed for telecommunications, test instrumentation and video applications. This high performance A/D converter is specified over temperature for AC and DC performance at a 40MHz sampling rate. The ADS800 is available in an SO-28 package. The ADS800 is a low power, monolithic 12-bit, 40MHz Analog-to-Digital (A/D) converter utilizing a small geometry CMOS process. This complete converter includes a 12-bit quantizer, wideband track/hold, reference and three-state outputs. It operates from a single +5V power supply and can be configured to accept either differential or single-ended input signals. The ADS800 employs digital error correction to provide excellent Nyquist differential linearity performance for demanding imaging applications. Its low distortion, high SNR and high oversampling capability give it the extra margin needed for telecommunications, test instrumentation and video applications. This high performance A/D converter is specified over temperature for AC and DC performance at a 40MHz sampling rate. The ADS800 is available in an SO-28 package.
