LM5045 Series

Catalog

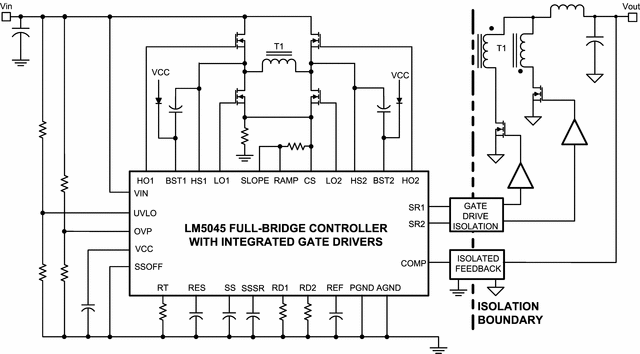

FULL-BRIDGE PWM CONTROLLER WITH INTEGRATED MOSFET DRIVERS

Part	Topology	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Package Name	Output Isolation	Operating Temperature (Max)	Operating Temperature (Min)	Control Features	Mounting Type	Frequency - Switching (Max)	Fault Protection	Package Width	Package Length	Internal Switch(s)	Package / Case	Supplied Contents	Board Type	Total Output Count	Output Type	Isolated Output Count	Frequency - Switching	Utilized IC / Part	Contents	Current - Output	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Regulator Topology	Main Purpose	Voltage - Output
Texas Instruments LM5045MHX/NOPB	Full-Bridge	14 V	100 V	28-HTSSOP 28-PowerTSSOP	Isolated	125 °C	-40 °C	Frequency Control Soft Start Sync	Surface Mount	2 MHz	Current Limiting Over Temperature Over Voltage	4.4 mm	0.173 in	No
Texas Instruments LM5045SQ/NOPB	Full-Bridge	14 V	100 V	28-WQFN	Isolated	125 °C	-40 °C	Frequency Control Soft Start Sync	Surface Mount	2 MHz	Current Limiting Over Temperature Over Voltage	5 mm	5 mm	No	28-WFQFN Exposed Pad
Texas Instruments LM5045MH/NOPB	Full-Bridge	14 V	100 V	28-HTSSOP 28-PowerTSSOP	Isolated	125 °C	-40 °C	Frequency Control Soft Start Sync	Surface Mount	2 MHz	Current Limiting Over Temperature Over Voltage	4.4 mm	0.173 in	No
Texas Instruments LM5045SQX/NOPB	Full-Bridge	14 V	100 V	28-WQFN	Isolated	125 °C	-40 °C	Frequency Control Soft Start Sync	Surface Mount	2 MHz	Current Limiting Over Temperature Over Voltage	5 mm	5 mm	No	28-WFQFN Exposed Pad
Texas Instruments LM5045EVAL/NOPB																Board(s)	Fully Populated	1	Isolated	1	420 kHz	LM5045	Board	30 A	36 V	75 V	Full-Bridge	DC/DC Step Down	3.3 V
