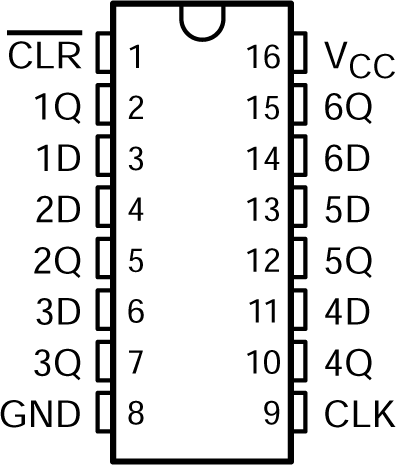

CD54ACT174 Series

Hex D Flip-Flops with Reset

Catalog

Hex D Flip-Flops with Reset

Part	Max Propagation Delay	Max CL	Package Name	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Width	Package Length	Type	Trigger Type	Clock Frequency	Current - Output Low	Current - Output High	Operating Temperature (Max)	Operating Temperature (Min)	Current - Quiescent (Iq)	Output Type	Number of Bits per Element	Number of Elements	Input Capacitance	Mounting Type	Function
Texas Instruments CD54ACT174F3A	14 ns	50 pF	16-CDIP	5.5 V	4.5 V	7.62 mm	0.3 in	D-Type	Positive Edge	80 MHz	24 mA	24 mA	125 °C	-55 °C	8 µA	Non-Inverted	6 bits	1	10 pF	Through Hole	Master Reset

Catalog

Hex D Flip-Flops with Reset

Description

The ’ACT174 devices are positive-edge-triggered D-type flip-flops with a direct clear (CLR) input and are designed for 4.5V to 5.5V VCC operation. The ’ACT174 devices are positive-edge-triggered D-type flip-flops with a direct clear (CLR) input and are designed for 4.5V to 5.5V VCC operation.
