ADS8028 Series

Catalog

12-BIT, 8-CHANNEL, 1MSPS, SAR ADC WITH INTERNAL REFERENCE AND INTERNAL TEMPERATURE SENSOR

Part	Configuration	Package Width	Package Name	Package Length	Architecture	Features	Ratio - ADC	Ratio - S/H	Number of Inputs	Input Type	Number of Bits	Reference Type	Package / Case	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Mounting Type	Data Interface	Sampling Rate (Per Second)	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Number of A/D Converters	Operating Temperature (Max)	Operating Temperature (Min)	Supplied Contents	Contents	Power (Typ)	Utilized IC / Part	Input Range

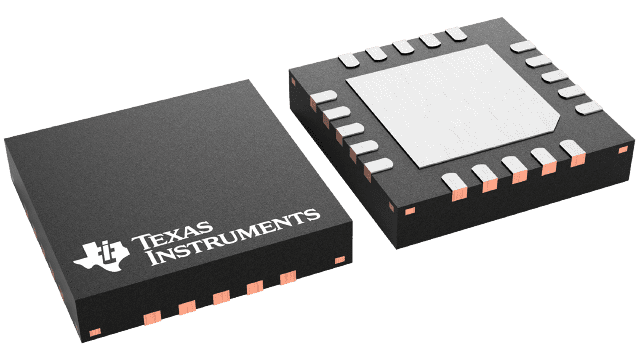

Texas Instruments ADS8028IRTJT	MUX-S/H-ADC	4 mm	20-QFN	4 mm	SAR	Temperature Sensor	1	1	8	Single Ended	12 bits	External Internal	20-WFQFN Exposed Pad	5.25 V	2.7 V	Surface Mount	SPI	1 MHz	5.25 V	1.65 V	1 count	125 °C	-40 °C
Texas Instruments ADS8028IRTJR	MUX-S/H-ADC	4 mm	20-QFN	4 mm	SAR	Temperature Sensor	1	1	8	Single Ended	12 bits	External Internal	20-WFQFN Exposed Pad	5.25 V	2.7 V	Surface Mount	SPI	1 MHz	5.25 V	1.65 V	1 count	125 °C	-40 °C

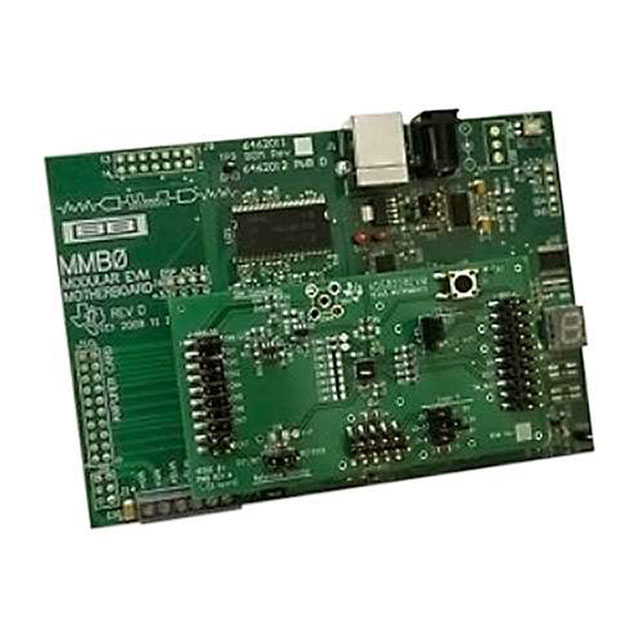

Texas Instruments ADS8028EVM-PDK											12 bits						SPI	1 MHz			1 count			Board(s)	Board	17 mW	ADS8028	0 ~ VREF
