CC1125 Series

Catalog

ULTRA-HIGH PERFORMANCE SUB-1 GHZ WIRELESS TRANSCEIVER FOR NARROWBAND SYSTEMS

Part	RF Family/Standard	GPIO Count	Sensitivity	Current - Transmitting (Min)	Current - Transmitting (Max)	Memory Type	Memory Size (RAM)	Memory Size (SRAM)	Memory Size (ROM)	Modulation	Serial Interfaces	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Type	Data Rate (Max)	Power - Output	Current - Receiving (Max)	Current - Receiving (Min)	Mounting Type	Frequency Range 4 (Max)	Frequency Range 3 (Max)	Frequency Range 2 (Max)	Frequency Range 3 (Min)	Frequency Range 4 (Min)	Frequency Range 2 (Min)	Frequency Range 1 (Max)	Frequency Range 1 (Min)	Package Width	Package Name	Package Length	Operating Temperature (Min)	Operating Temperature (Max)	Supplied Contents	For Use With/Related Products	Frequency	Contents	Utilized IC / Part
Texas Instruments CC1125RHBR	General ISM < 1GHz	4	-129 dBm	26 mA	56 mA	RAM ROM	256 B	256 B	4 kB	2FSK 2GFSK 4FSK 4GFSK MSK OOK	SPI	3.6 V	2 V	32-VFQFN Exposed Pad	TxRx + MCU	200 kbps	16 dBm	27 mA	17 mA	Surface Mount	960 MHz	480 MHz	320 MHz	410 MHz	820 MHz	274 MHz	192 MHz	164 MHz	5 mm	32-VQFN	5 mm	-40 °C	85 °C
Texas Instruments CC1125RHMT	General ISM < 1GHz	4	-129 dBm	26 mA	56 mA	RAM ROM	256 B	256 B	4 kB	2FSK 2GFSK 4FSK 4GFSK MSK OOK	SPI	3.6 V	2 V	32-VFQFN Exposed Pad	TxRx + MCU	200 kbps	16 dBm	27 mA	17 mA	Surface Mount	960 MHz	480 MHz	320 MHz	410 MHz	820 MHz	274 MHz	192 MHz	164 MHz	5 mm	32-VQFN	5 mm	-40 °C	85 °C

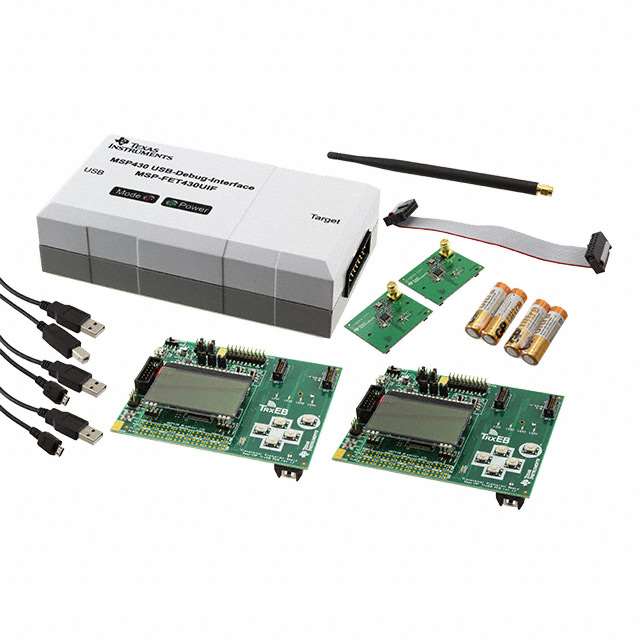

Texas Instruments CC1125DK															ISM Transceiver																			Accessories Board(s) Cable(s)	CC1125	868 MHz	Accessories Board Cable	CC1125
Texas Instruments CC1125RHBT	General ISM < 1GHz	4	-129 dBm	26 mA	56 mA	RAM ROM	256 B	256 B	4 kB	2FSK 2GFSK 4FSK 4GFSK MSK OOK	SPI	3.6 V	2 V	32-VFQFN Exposed Pad	TxRx + MCU	200 kbps	16 dBm	27 mA	17 mA	Surface Mount	960 MHz	480 MHz	320 MHz	410 MHz	820 MHz	274 MHz	192 MHz	164 MHz	5 mm	32-VQFN	5 mm	-40 °C	85 °C
