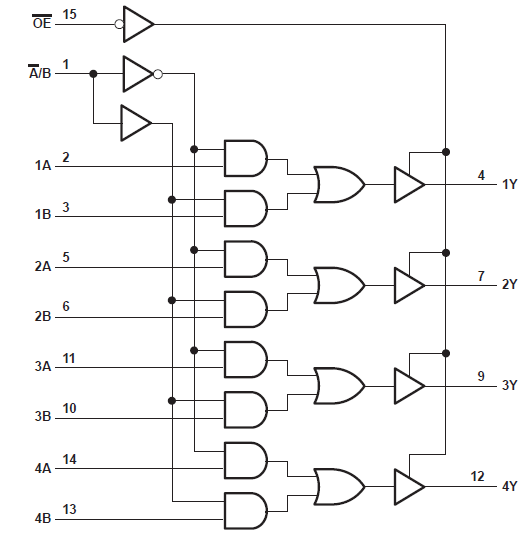

SN74HCT257 Series
Quadruple 2-Line To 1-Line Data Selectors/Multiplexers With 3-State Outputs
Manufacturer: Texas Instruments
Catalog
Quadruple 2-Line To 1-Line Data Selectors/Multiplexers With 3-State Outputs
Beta
⌘K
Quadruple 2-Line To 1-Line Data Selectors/Multiplexers With 3-State Outputs
Quadruple 2-Line To 1-Line Data Selectors/Multiplexers With 3-State Outputs
Quadruple 2-Line To 1-Line Data Selectors/Multiplexers With 3-State Outputs
| Part | Current - Output High | Current - Output Low | Independent Circuits | Package Length | Package Name | Package Width | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Supply Source | Circuit | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 6 mA | 6 mA | 1 | 0.3 in | 16-DIP 16-PDIP | 7.62 mm | 5.5 V | 4.5 V | -40 °C | 85 °C | Single Supply | 4 x 2:1 | Through Hole | Multiplexer |
