AD9523 Series

Catalog

LOW JITTER CLOCK GENERATOR WITH 14 LVPECL/LVDS/HSTL/29 LVCMOS OUTPUTS

Part	Package / Case	Main Purpose	PLL	Output	Number of Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	Differential Input	Differential Output	Output Ratio	Input Ratio	Frequency - Max	Input	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Supplied Contents	Embedded	Secondary Attributes	Type	Function	Contents	Utilized IC / Part	Primary Attributes
Analog Devices Inc./Maxim Integrated AD9523-1BCPZ	72-VFQFN Exposed Pad CSP	Ethernet Fibre Channel SONET/SDH	Yes	HSTL LVCMOS LVDS LVPECL	1	-40 °C	85 °C	10 mm	72-LFCSP-VQ	10 mm	Yes	Yes	14	2	1 GHz	CMOS	1.768 V	3.465 V	Surface Mount
Analog Devices Inc./Maxim Integrated AD9523BCPZ	72-VFQFN Exposed Pad CSP	Ethernet Fibre Channel SONET/SDH	Yes	HSTL LVCMOS LVDS LVPECL	1	-40 °C	85 °C	10 mm	72-LFCSP-VQ	10 mm	Yes	Yes	14	2	1 GHz	CMOS	1.71 V	3.465 V	Surface Mount
Analog Devices Inc./Maxim Integrated AD9523-1BCPZ-REEL7	72-VFQFN Exposed Pad CSP	Ethernet Fibre Channel SONET/SDH	Yes	HSTL LVCMOS LVDS LVPECL	1	-40 °C	85 °C	10 mm	72-LFCSP-VQ	10 mm	Yes	Yes	14	2	1 GHz	CMOS	1.768 V	3.465 V	Surface Mount
Analog Devices Inc./Maxim Integrated AD9523BCPZ-REEL7	72-VFQFN Exposed Pad CSP	Ethernet Fibre Channel SONET/SDH	Yes	HSTL LVCMOS LVDS LVPECL	1	-40 °C	85 °C	10 mm	72-LFCSP-VQ	10 mm	Yes	Yes	14	2	1 GHz	CMOS	1.71 V	3.465 V	Surface Mount

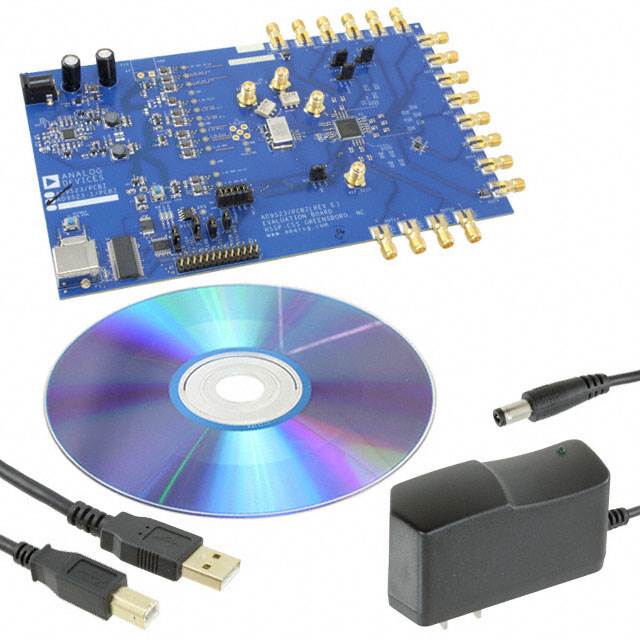

Analog Devices Inc./Maxim Integrated AD9523-1/PCBZ																				Board(s)	No	On-Board LEDs	Timing	Clock Generator	Board	AD9523	On Board PLL Loop Filter
