LM3502 Series

Catalog

IC LED DRV RGLTR PWM 16WQFN

Part	Topology	Number of Outputs	Package / Case	Package Width	Package Name	Package Length	Current - Output / Channel	Operating Temperature (Max)	Operating Temperature (Min)	Dimming	Voltage - Supply (Min)	Voltage - Supply (Max)	Applications	Mounting Type	Frequency	Voltage - Output	Type	Internal Switch(s)	Supplied Contents	Total Output Count	Output Type	Non-Isolated Output Count	Utilized IC / Part	Contents	Voltage - Input (Minimum)	Voltage - Input (Maximum)
Texas Instruments LM3502SQ-35/NOPB	Step-Up (Boost)	2	16-WFQFN Exposed Pad	4 mm	16-WQFN	4 mm	750 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	35 V	DC DC Regulator	Yes
Texas Instruments LM3502SQX-44/NOPB	Step-Up (Boost)	2	16-WFQFN Exposed Pad	4 mm	16-WQFN	4 mm	750 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	44 V	DC DC Regulator	Yes

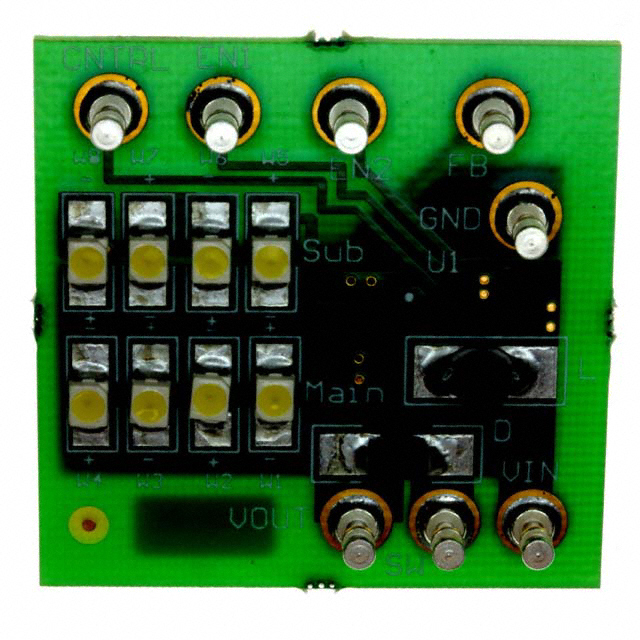

Texas Instruments LM3502ITL-44EV/NOPB							9 mA									44 V			Board(s)	2	Non-Isolated	2 count	LM3502	Board	2.5 V	5.5 V
Texas Instruments LM3502ITL-44EV							9 mA									44 V			Board(s)	2	Non-Isolated	2 count	LM3502	Board	2.5 V	5.5 V
Texas Instruments LM3502ITLX-35/NOPB	Step-Up (Boost)	2	10-WFBGA DSBGA	2.07 mm	10-TµSMD	1.9 mm	750 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	35 V	DC DC Regulator	Yes
Texas Instruments LM3502SQ-35	Step-Up (Boost)	2	16-WFQFN Exposed Pad	4 mm	16-WQFN	4 mm	750 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	35 V	DC DC Regulator	Yes
Texas Instruments LM3502SQ-44/NOPB	Step-Up (Boost)	2	16-WFQFN Exposed Pad	4 mm	16-WQFN	4 mm	750 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	44 V	DC DC Regulator	Yes
Texas Instruments LM3502SQX-16	Step-Up (Boost)	2	16-WFQFN Exposed Pad	4 mm	16-WQFN	4 mm	400 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	16 VAC	DC DC Regulator	Yes
Texas Instruments LM3502SQX-25/NOPB	Step-Up (Boost)	2	16-WFQFN Exposed Pad	4 mm	16-WQFN	4 mm	600 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	25 V	DC DC Regulator	Yes
Texas Instruments LM3502ITLX-16/NOPB	Step-Up (Boost)	2	10-WFBGA DSBGA	2.07 mm	10-TµSMD	1.9 mm	400 mA	85 °C	-40 °C	PWM	2.5 V	5.5 V	Backlight	Surface Mount	1 MHz	16 VAC	DC DC Regulator	Yes
