SN65HVD30-EP Series

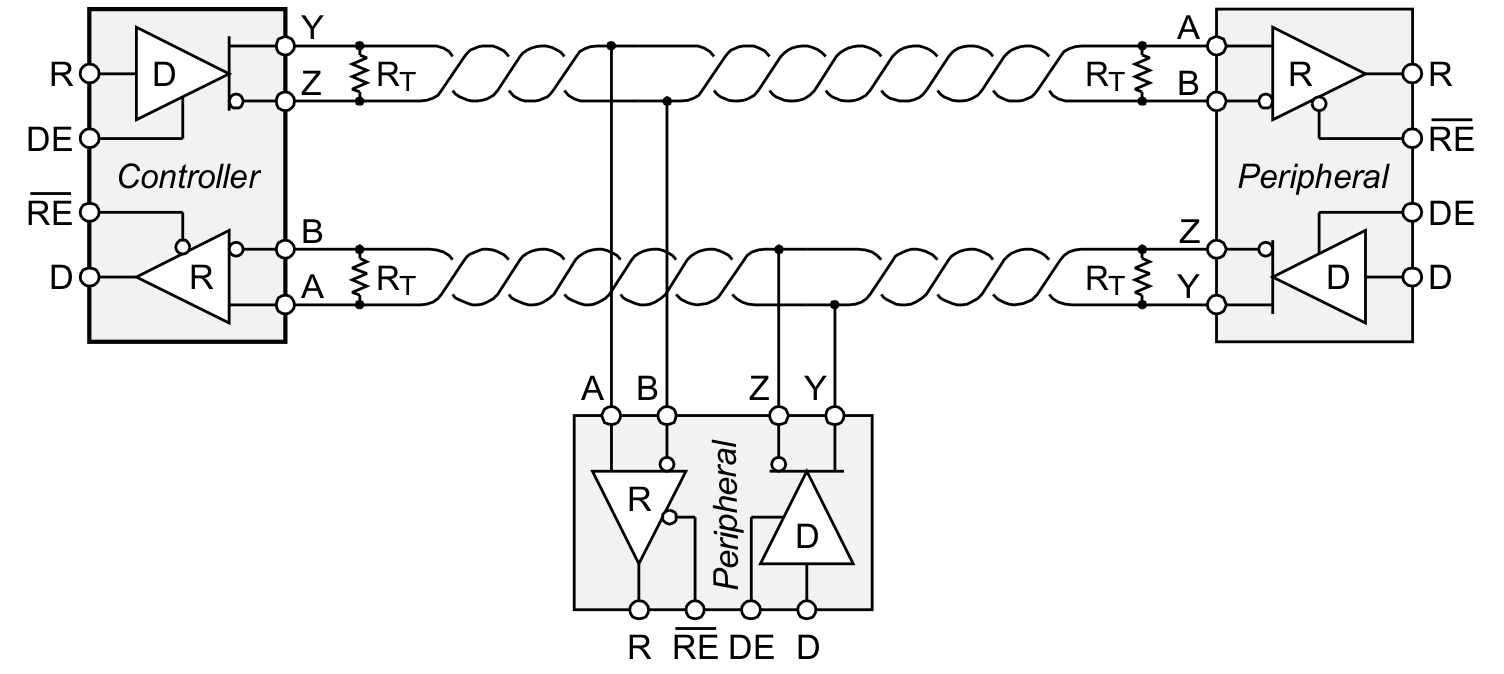

The SN65HVD3x-EP devices are 3-state differential line drivers and differential-input line receivers that operate with 3V power supply. Each driver and receiver has separate input and output pins for full-duplex bus communication designs. They are designed for balanced transmission lines and interoperation with ANSI TIA/EIA-485A, TIA/EIA-422-B, ITU-T v.11, and ISO 8482:1993 standard-compliant devices. The SN65HVD30 is fully enabled with no external enabling pins. The SN65HVD33 has active-high driver enables and active-low receiver enables. A low (less than 1µA) standby current is achieved by disabling both the driver and receiver. All devices are characterized for operation from –55°C to 125°C. The SN65HVD3x-EP devices are 3-state differential line drivers and differential-input line receivers that operate with 3V power supply. Each driver and receiver has separate input and output pins for full-duplex bus communication designs. They are designed for balanced transmission lines and interoperation with ANSI TIA/EIA-485A, TIA/EIA-422-B, ITU-T v.11, and ISO 8482:1993 standard-compliant devices. The SN65HVD30 is fully enabled with no external enabling pins. The SN65HVD33 has active-high driver enables and active-low receiver enables. A low (less than 1µA) standby current is achieved by disabling both the driver and receiver. All devices are characterized for operation from –55°C to 125°C.
