LMZ10505 Series

Catalog

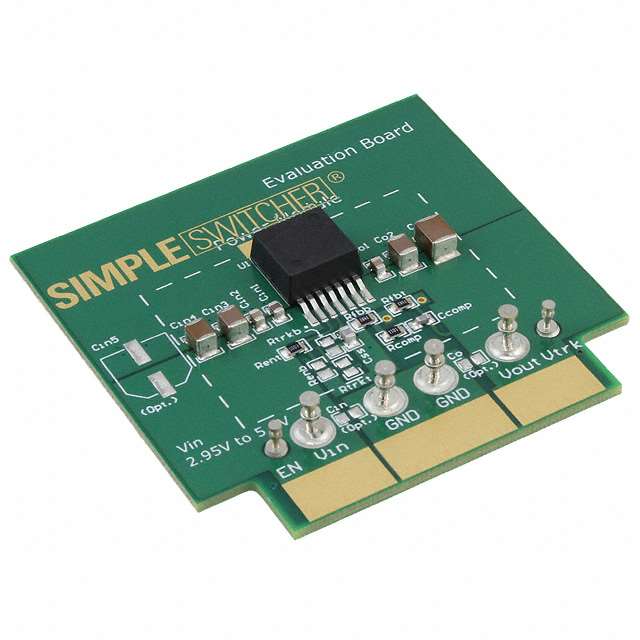

EVAL BOARD FOR LMZ10505

Part	Supplied Contents	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Contents	Regulator Topology	Main Purpose	Voltage - Output	Frequency - Switching	Utilized IC / Part	Current - Output	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Features	Number of Outputs	Type	Mounting Type	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Efficiency	Current - Output (Max)	Applications	Voltage - Output 1 (Min)	Voltage - Output 1 (Max)	Package / Case	Package Name	Voltage - Input (Min)	Control Features
Texas Instruments LMZ10505EVAL/NOPB	Board(s)	1	Non-Isolated	1 count	Fully Populated	Board	Buck	DC/DC Step Down	2.5 V	1 MHz	LMZ10505	5 A	5.5 V	2.95 V
Texas Instruments LMZ10505TZX-ADJ/NOPB															125 °C	-40 °C	5.5 V	UVLO	1	Non-Isolated PoL Module	Surface Mount	0.39 in	0.18 in	0.4 in	96 %	5 A	ITE (Commercial)	800 mV	5 V	Power Module TO-PMOD-7	TO-PMOD-7	2.95 V	Active High Enable
Texas Instruments LMZ10505TZE-ADJ/NOPB															125 °C	-40 °C	5.5 V	UVLO	1	Non-Isolated PoL Module	Surface Mount	0.39 in	0.18 in	0.4 in	96 %	5 A	ITE (Commercial)	800 mV	5 V	Power Module TO-PMOD-7	TO-PMOD-7	2.95 V	Active High Enable
Texas Instruments LMZ10505EXTTZE/NOPB															125 °C	-55 °C	5.5 V	UVLO	1	Non-Isolated PoL Module	Surface Mount	0.39 in	0.18 in	0.4 in	96 %	5 A	ITE (Commercial)	800 mV	5 V	Power Module TO-PMOD-7	TO-PMOD-7	2.95 V	Active High Enable
Texas Instruments LMZ10505EXTEVAL/NOPB	Board(s)	1	Non-Isolated	1 count	Fully Populated	Board	Buck	DC/DC Step Down	2.5 V	1 MHz	LMZ10505EXT	5 A	5.5 V	2.95 V
Texas Instruments LMZ10505EXTTZX/NOPB															125 °C	-55 °C	5.5 V	UVLO	1	Non-Isolated PoL Module	Surface Mount	0.39 in	0.18 in	0.4 in	96 %	5 A	ITE (Commercial)	800 mV	5 V	Power Module TO-PMOD-7	TO-PMOD-7	2.95 V	Active High Enable
Texas Instruments LMZ10505TZ-ADJ/NOPB															125 °C	-40 °C	5.5 V	UVLO	1	Non-Isolated PoL Module	Surface Mount	0.39 in	0.18 in	0.4 in	96 %	5 A	ITE (Commercial)	800 mV	5 V	Power Module TO-PMOD-7	TO-PMOD-7	2.95 V	Active High Enable
Texas Instruments LMZ10505EXTTZ/NOPB															125 °C	-55 °C	5.5 V	UVLO	1	Non-Isolated PoL Module	Surface Mount	0.39 in	0.18 in	0.4 in	96 %	5 A	ITE (Commercial)	800 mV	5 V	Power Module TO-PMOD-7	TO-PMOD-7	2.95 V	Active High Enable
