ADS7824 Series

Catalog

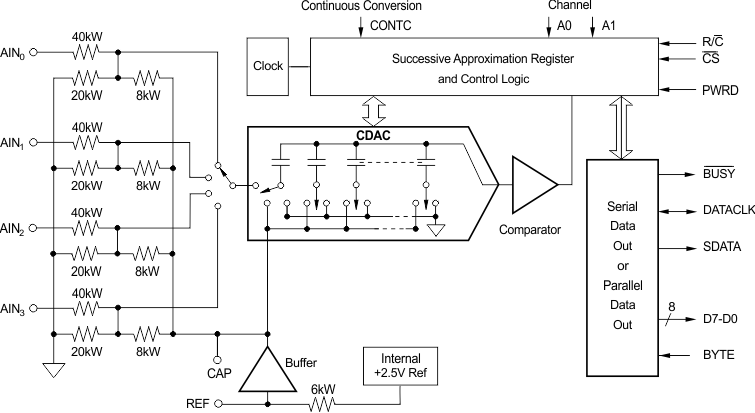

4-CHANNEL, 12-BIT SAMPLING CMOS A/D CONVERTER

Part	Package Name	Voltage - Supply, Digital	Sampling Rate (Per Second)	Ratio - ADC	Ratio - S/H	Architecture	Data Interface	Voltage - Supply, Analog	Reference Type	Number of Inputs	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of A/D Converters	Package Width	Package Length	Input Type	Number of Bits	Configuration
Texas Instruments ADS7824UB	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824UB/1K	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824P	28-DIP 28-PDIP	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Through Hole	1 count	7.62 mm	0.3 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824UBG4	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824U/1K	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824P	28-DIP 28-PDIP	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Through Hole	1 count	7.62 mm	0.3 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824UB	28-SOIC	5 V	40 kHz			SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824U	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824U/1K	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
Texas Instruments ADS7824UB/1KG4	28-SOIC	5 V	40 kHz	1	1	SAR	Parallel SPI	5 V	External Internal	4	-40 °C	85 °C	Surface Mount	1 count	7.5 mm	0.295 in	Single Ended	12 bits	S/H-ADC
