BQ25672 Series
Manufacturer: Texas Instruments
Beta
⌘K

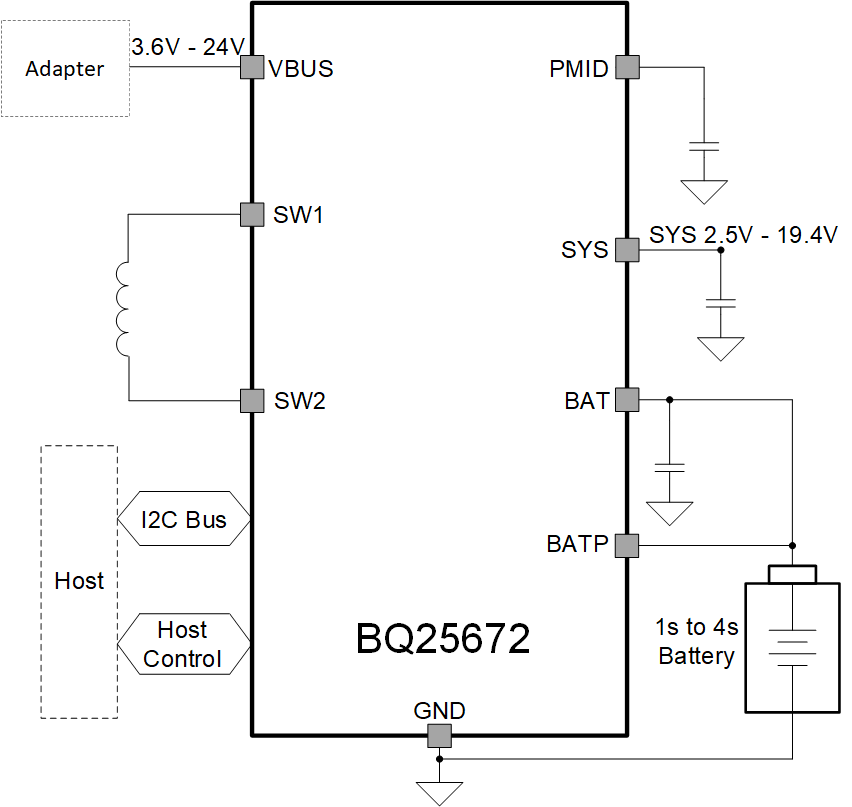

I²C CONTROLLED, 1- TO 4-CELL, 3-A BUCK BATTERY CHARGER WITH DUAL-INPUT SELECTOR AND INTEGRATED ADC
| Part | Charge Current - Max | Package Name | Package Width | Package Length | Number of Cells (Max) | Number of Cells (Min) | Mounting Type | Battery Chemistry | Voltage - Supply (Max) | Fault Protection | Battery Pack Voltage (Max) | Package / Case | Current - Charging | Programmable Features | Interface | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3 A | 29-VQFN-HR | 4 mm | 4 mm | 4 | 1 | Surface Mount | Lithium Ion Polymer | 24 V | Over Current Over Voltage | 18.8 V | 29-VFQFN | Constant | Current Voltage | I2C | 85 °C | -40 °C |
