CSD43301Q5M Series

NexFET™ Smart Synchronous Rectifier

Catalog

NexFET™ Smart Synchronous Rectifier

Part	Package / Case	Output Configuration	Output Ratio	Input Ratio	Mounting Type	Output Type	Number of Outputs	Voltage - Load (Min)	Voltage - Load (Max)	Voltage - Supply (Vdd/Vcc)	Voltage - Supply (Vcc/Vdd)	Current - Output (Max)	Rds On (Typ)	Interface	Operating Temperature (Max)	Operating Temperature (Min)	Fault Protection	Package Name	Package Width	Package Length	Switch Type
Texas Instruments CSD43301Q5M	12-PowerLFDFN	Low Side	1	1	Surface Mount	N-Channel	1	4.5 V	6 V	Not Required	Not Required	80 A	0.55 mOhm	On/Off	125 °C	-40 °C	UVLO	12-LSON-CLIP	6 mm	5 mm	General Purpose

Catalog

NexFET™ Smart Synchronous Rectifier

Description

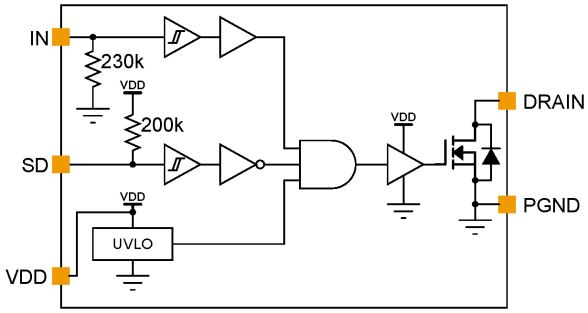

The CSD43301Q5M NexFET Smart Synchronous Rectifier is a highly optimized design for secondary synchronous rectification in a high power high density DC/DC converter. This product integrates the driver IC and an ultra low RonPower MOSFET to complete the synchronous rectification function. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design. The CSD43301Q5M NexFET Smart Synchronous Rectifier is a highly optimized design for secondary synchronous rectification in a high power high density DC/DC converter. This product integrates the driver IC and an ultra low RonPower MOSFET to complete the synchronous rectification function. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
