AM1705 Series

Catalog

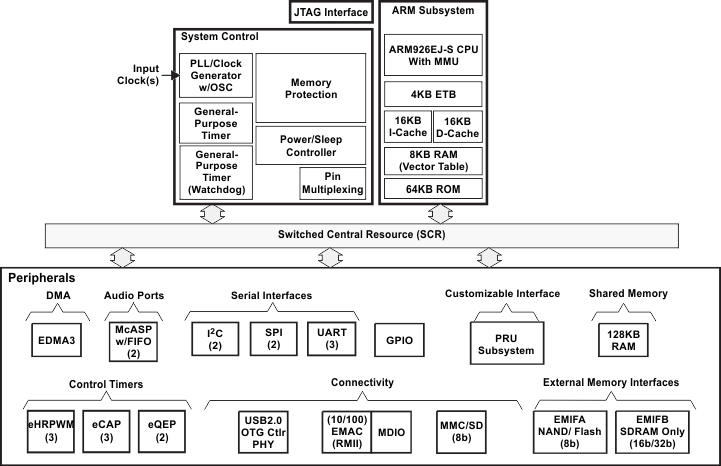

SITARA PROCESSOR: ARM9, SDRAM, ETHERNET

Part	Ethernet Ports	Ethernet Speed Options	Bus Width	Number of Cores	Operating Temperature (Max)	Operating Temperature (Min)	Speed	Additional Interfaces	Core Processor	Voltage - I/O (Option 2)	Voltage - I/O (Option 1)	Graphics Acceleration	Mounting Type	Co-Processors/DSP	Package Length	Package Name	Package Width	USB 2.0 PHY Count	USB	RAM Controllers	Package / Case
Texas Instruments AM1705DPTPD4	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	-40 °C	456 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705BPTP4	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	0 °C	456 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705BPTPA3	1	100Mbps 10Mbps	32 Bit	1 Core	105 °C	-40 °C	375 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705BPTPD4	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	-40 °C	456 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705BPTP3	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	0 °C	375 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705CPTP3	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	0 °C	375 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705DPTP3	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	0 °C	375 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705DPTP4	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	0 °C	456 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705DPTPA3	1	100Mbps 10Mbps	32 Bit	1 Core	105 °C	-40 °C	375 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
Texas Instruments AM1705CPTPD4	1	100Mbps 10Mbps	32 Bit	1 Core	90 °C	-40 °C	456 MHz	I2C McASP MMC SD SPI UART	ARM926EJ-S	3.3 V	1.8 V	No	Surface Mount	CP15 System Control	24 mm	176-HLQFP	24 mm	1 count	USB 2.0 + PHY	SDRAM	176-LQFP Exposed Pad
