TPS57114 Series
Manufacturer: Texas Instruments
Beta
⌘K
CONV DC-DC 2.95V TO 6V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.8V 3.5A 16-PIN WQFN EP T/R
| Part | Output Type | Voltage - Input (Min) | Output Configuration | Package Length | Package Name | Package Width | Number of Outputs | Operating Temperature (Max) | Operating Temperature (Min) | Current - Output | Package / Case | Function | Synchronous Rectifier | Frequency - Switching (Max) | Frequency - Switching (Min) | Topology | Voltage - Output (Min/Fixed) | Voltage - Input (Max) | Mounting Type | Voltage - Output (Max) | Grade | Qualification | Board Type | Total Output Count | Non-Isolated Output Count | Supplied Contents | Voltage - Output | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Regulator Topology | Frequency - Switching | Main Purpose | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Adjustable | 2.95 V | Positive | 3 mm | 16-WQFN | 3 mm | 1 | 125 °C | -55 °C | 3.5 A | 16-WFQFN Exposed Pad | Step-Down | Yes | 2 MHz | 200 kHz | Buck | 0.8 V | 6 V | Surface Mount | 4.5 V | |||||||||||||
Texas Instruments | Adjustable | 2.95 V | Positive | 3 mm | 16-WQFN | 3 mm | 1 | 125 °C | -40 °C | 4 A | 16-WFQFN Exposed Pad | Step-Down | Yes | 2 MHz | 200 kHz | Buck | 0.8 V | 6 V | Surface Mount | 4.5 V | Automotive | AEC-Q100 | |||||||||||
 Texas Instruments | Automotive | AEC-Q100 | |||||||||||||||||||||||||||||||

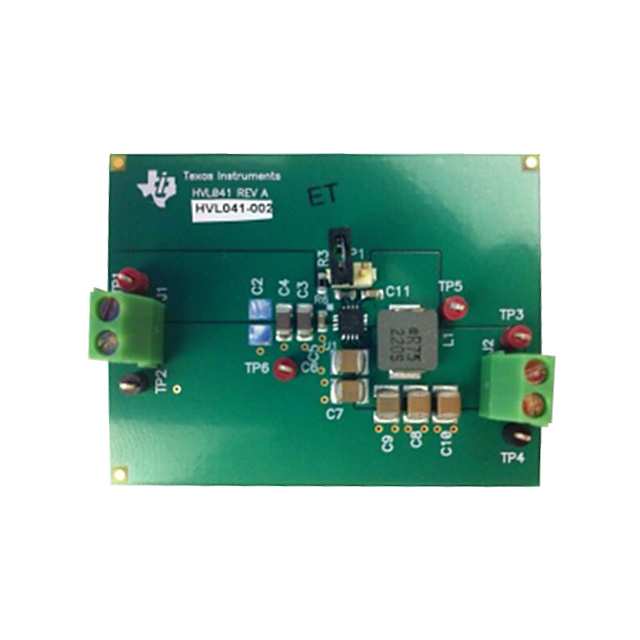

 Texas Instruments | Non-Isolated | 4 A | Fully Populated | 1 | 1 count | Board(s) | 1.2 V | 3 V | 6 V | Buck | 2 MHz | DC/DC Step Down | Board |
