SN74AHCT1G86-Q1 Series
Manufacturer: Texas Instruments
Beta
⌘K

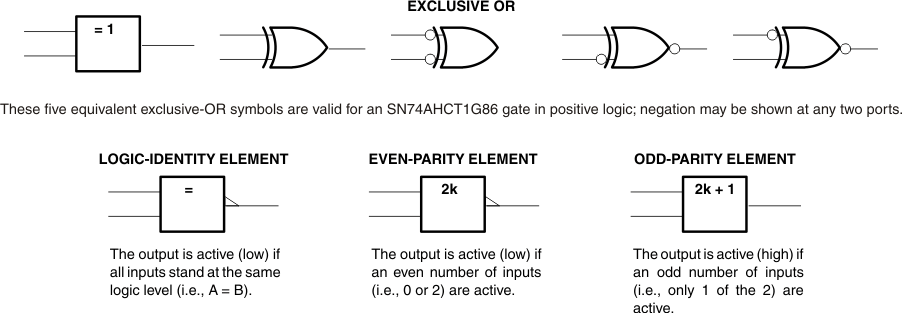

AUTOMOTIVE SINGLE 2-INPUT, 4.5-V TO 5.5-V XOR (EXCLUSIVE OR) GATE WITH TTL-COMPATIBLE CMOS INPUTS
| Part | Current - Quiescent (Max) | Package Name | Max Propagation Delay | Max CL | Qualification | Current - Output Low | Current - Output High | Grade | Number of Inputs | Mounting Type | Input Logic Level - High | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Logic Type | Package / Case | Number of Circuits | Input Logic Level - Low (Voltage) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 µA | SC-70-5 | 7.9 ns | 50 pF | AEC-Q100 | 8 mA | 8 mA | Automotive | 2 | Surface Mount | 2 V | 125 °C | -40 °C | 5.5 V | 4.5 V | XOR (Exclusive OR) | 5-TSSOP SC-70-5 SOT-353 | 1 | 0.8 V |
 Texas Instruments | 1 µA | SOT-23-5 | 7.9 ns | 50 pF | AEC-Q100 | 8 mA | 8 mA | Automotive | 2 | Surface Mount | 2 V | 125 °C | -40 °C | 5.5 V | 4.5 V | XOR (Exclusive OR) | 1 | 0.8 V |
