LM2651 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC REG BUCK 2.5V 1.5A 16TSSOP
| Part | Function | Synchronous Rectifier | Voltage - Input (Max) | Output Configuration | Number of Outputs | Operating Temperature (Max) | Operating Temperature (Min) | Current - Output | Frequency - Switching | Package Name | Topology | Mounting Type | Package Length | Package Width | Voltage - Input (Min) | Voltage - Output (Min/Fixed) | Output Type | Voltage - Output (Max) | Board Type | Total Output Count | Non-Isolated Output Count | Supplied Contents | Contents | Main Purpose | Voltage - Output | Regulator Topology | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 2.5 V | Fixed | ||||||||||||
Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 3.3 V | Fixed | ||||||||||||
 Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 1.238 V | Adjustable | 13 V | |||||||||||

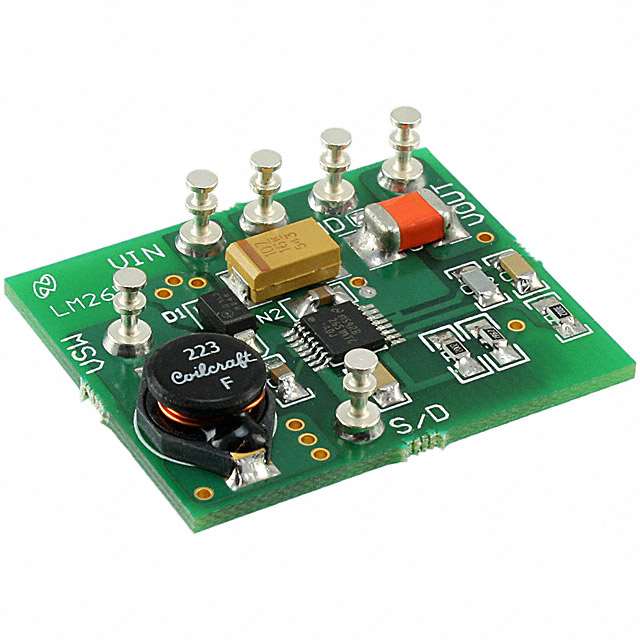

 Texas Instruments | 1.5 A | 300 kHz | Non-Isolated | Fully Populated | 1 | 1 count | Board(s) | Board | DC/DC Step Down | 2.5 V | Buck | 14 V | 4 V | LM2651 | |||||||||||||||
 Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 3.3 V | Fixed | ||||||||||||
Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 3.3 V | Fixed | ||||||||||||
 Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 1.238 V | Adjustable | 13 V | |||||||||||
Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 1.8 V | Fixed | ||||||||||||
 Texas Instruments | 1.5 A | 300 kHz | Non-Isolated | Fully Populated | 1 | 1 count | Board(s) | Board | DC/DC Step Down | 3.3 V | Buck | 14 V | 4 V | LM2651 | |||||||||||||||
Texas Instruments | Step-Down | Yes | 14 V | Positive | 1 | 125 °C | -40 °C | 1.5 A | 300 kHz | 16-TSSOP | Buck | Surface Mount | 0.173 in | 4.4 mm | 4 V | 2.5 V | Fixed |
