LP2987 Series

200-mA, 16-V, low-dropout voltage regulator with power good & enable

Catalog

200-mA, 16-V, low-dropout voltage regulator with power good & enable

Part	Current - Output	Current - Quiescent (Iq)	Output Type	Voltage - Output (Min/Fixed)	Voltage - Input (Max)	Protection Features	Number of Regulators	Package Name	Current - Supply (Max)	PSRR	Voltage Dropout (Max)	Output Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Control Features	Mounting Type	Package Length	Package Width	Package / Case
Texas Instruments LP2987IMX-3.3	200 mA	120 µA	Fixed	3.3 V	16 V	Over Current Over Temperature Short Circuit	1	8-SOIC	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.154 in	3.9 mm
Texas Instruments LP2987IMX-5.0	200 mA	120 µA	Fixed	5 V	16 V	Over Current Over Temperature Short Circuit	1	8-SOIC	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.154 in	3.9 mm
Texas Instruments LP2987IM-3.3	200 mA	120 µA	Fixed	3.3 V	16 V	Over Current Over Temperature Short Circuit	1	8-SOIC	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.154 in	3.9 mm
Texas Instruments LP2987AIM-2.5/NOPB	200 mA	120 µA	Fixed	2.5 V	16 V	Over Current Over Temperature Short Circuit	1	8-SOIC	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.154 in	3.9 mm
Texas Instruments LP2987IMM-3.3/NOPB	200 mA	120 µA	Fixed	3.3 V	16 V	Over Current Over Temperature Short Circuit	1	8-TSSOP 8-MSOP 8-VSSOP	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.118 in	3 mm
Texas Instruments LP2987IMM-5.0	200 mA	120 µA	Fixed	5 V	16 V	Over Current Over Temperature Short Circuit	1	8-TSSOP 8-MSOP 8-VSSOP	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.118 in	3 mm
Texas Instruments LP2987AILDX-5.0	200 mA	120 µA	Fixed	5 V	16 V	Over Current Over Temperature Short Circuit	1	8-WSON	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	4 mm	4 mm	8-WDFN Exposed Pad
Texas Instruments LP2987IMM-3.3	200 mA	120 µA	Fixed	3.3 V	16 V	Over Current Over Temperature Short Circuit	1	8-TSSOP 8-MSOP 8-VSSOP	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.118 in	3 mm
Texas Instruments LP2987IMMX-3.3	200 mA	120 µA	Fixed	3.3 V	16 V	Over Current Over Temperature Short Circuit	1	8-TSSOP 8-MSOP 8-VSSOP	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.118 in	3 mm
Texas Instruments LP2987AIM-3.0/NOPB	200 mA	120 µA	Fixed	3 V	16 V	Over Current Over Temperature Short Circuit	1	8-SOIC	3.7 mA	65 dB	0.35 V	Positive	125 °C	-40 °C	Enable	Surface Mount	0.154 in	3.9 mm

Catalog

200-mA, 16-V, low-dropout voltage regulator with power good & enable

Description

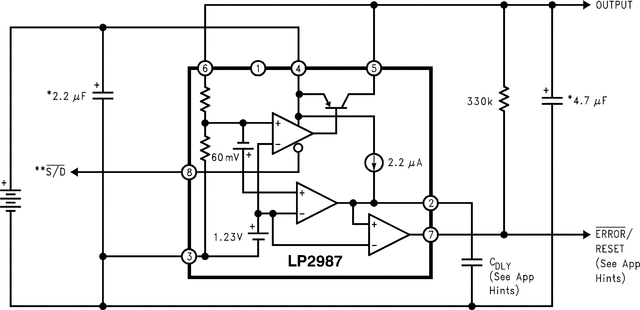

The LP2987/8 are fixed-output 200 mA precision LDO voltage regulators with power-ON reset delay which can be implemented using a single external capacitor. The LP2988 is specifically designed for noise-critical applications. A single external capacitor connected to the Bypass pin reduces regulator output noise. Using an optimized VIP (Vertically Integrated PNP) process, these regulators deliver superior performance: Dropout Voltage:180 mV @ 200 mA load, and 1 mV @ 1 mA load (typical). Ground Pin Current:1 mA @ 200 mA load, and 200 μA @ 10 mA load (typical). Sleep Mode:The LP2987/8 draws less than 2 μA quiescent current when shutdown pin is held low. Error Flag/Reset:The error flag goes low when the output drops approximately 5% below nominal. This pin also provides a power-ON reset signal if a capacitor is connected to the DELAY pin. Precision Output:Standard product versions of the LP2987 and LP2988 are available with output voltages of 5.0V, 3.8V, 3.3V, 3.2V, 3.0V, or 2.8V, with specified accuracy of 0.5% ("A" grade) and 1% (standard grade) at room temperature. The LP2987/8 are fixed-output 200 mA precision LDO voltage regulators with power-ON reset delay which can be implemented using a single external capacitor. The LP2988 is specifically designed for noise-critical applications. A single external capacitor connected to the Bypass pin reduces regulator output noise. Using an optimized VIP (Vertically Integrated PNP) process, these regulators deliver superior performance: Dropout Voltage:180 mV @ 200 mA load, and 1 mV @ 1 mA load (typical). Ground Pin Current:1 mA @ 200 mA load, and 200 μA @ 10 mA load (typical). Sleep Mode:The LP2987/8 draws less than 2 μA quiescent current when shutdown pin is held low. Error Flag/Reset:The error flag goes low when the output drops approximately 5% below nominal. This pin also provides a power-ON reset signal if a capacitor is connected to the DELAY pin. Precision Output:Standard product versions of the LP2987 and LP2988 are available with output voltages of 5.0V, 3.8V, 3.3V, 3.2V, 3.0V, or 2.8V, with specified accuracy of 0.5% ("A" grade) and 1% (standard grade) at room temperature.
