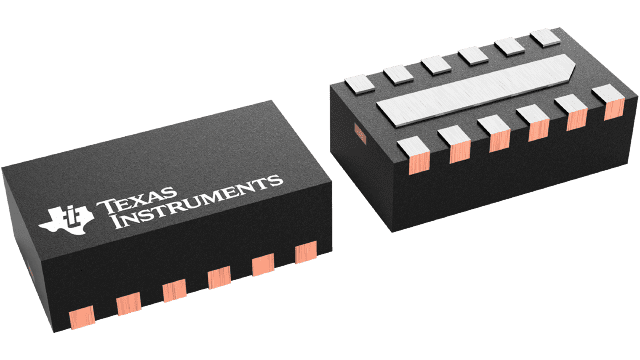

TPD6F003 Series
Manufacturer: Texas Instruments
Beta
⌘K
6 CHANNEL 5.5-V, ±12KV ESD PROTECTION & EMI FILTER WITH 200-MHZ -3-DB
| Part | Package / Case | Mounting Type | Size / Dimension Width | Size / Dimension Length | Height | Technology | Applications | Operating Temperature (Min) | Operating Temperature (Max) | Number of Channels | Cutoff Frequency | ESD Protection | Type | Resistance - Channel (Ohms) | Attenuation Value | Filter Order | Capacitance | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 12-WFDFN Exposed Pad | Surface Mount | 0.053 in | 0.098 in | 0.031 in | RC (Pi) | Data Lines for Mobile Devices | -40 °C | 85 °C | 6 | 200 MHz | Yes | Low Pass | 100 Ohm | 25 dB | 2 | 8.5 pF | 100 Ohms |
