TPA3118 Series

Catalog

30-W STEREO, 60-W MONO, 4.5- TO 26-V SUPPLY, ANALOG INPUT CLASS-D AUDIO AMPLIFIER

Part	Output Type	Features	Type	Mounting Type	Package Name	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Maximum Output Power (per Channel)	Channels	Load Impedance	Package Width	Package Length	Qualification	Grade	Supplied Contents	Board Type	Utilized IC / Part	Contents	Amplifier Type
Texas Instruments TPA3118D2DAP	2-Channel (Stereo)	Differential Inputs Mute Short-Circuit and Thermal Protection Shutdown	Class D	Surface Mount	32-HTSSOP 32-PowerTSSOP	26 V	4.5 V	85 °C	-40 °C	30 W	2	8 Ohm	6.1 mm	0.24 in
Texas Instruments TPA3118D2QDAPRQ1	2-Channel (Stereo)	Short-Circuit and Thermal Protection	Class D	Surface Mount	32-HTSSOP 32-PowerTSSOP	26 V	4.5 V	125 °C	-40 °C	30 W	2	8 Ohm	6.1 mm	0.24 in	AEC-Q100	Automotive
Texas Instruments TPA3118D2DAPR	2-Channel (Stereo)	Differential Inputs Mute Short-Circuit and Thermal Protection Shutdown	Class D	Surface Mount	32-HTSSOP 32-PowerTSSOP	26 V	4.5 V	85 °C	-40 °C	30 W	2	8 Ohm	6.1 mm	0.24 in

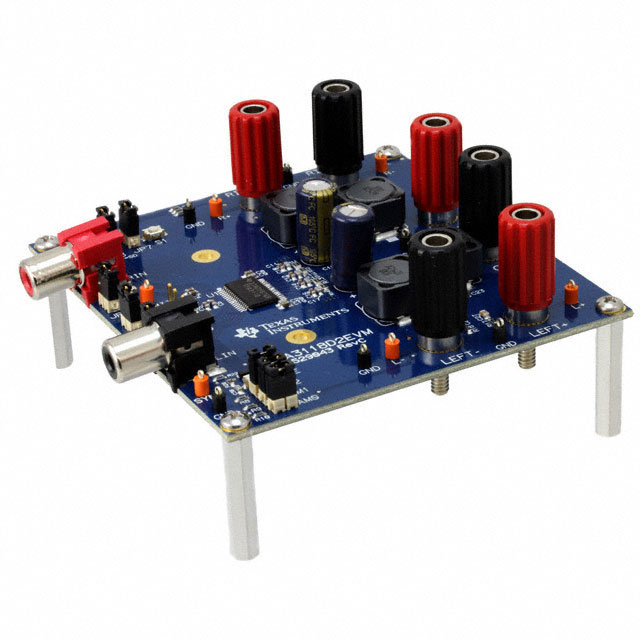

Texas Instruments TPA3118D2EVM	2-Channel (Stereo)					26 V	4.5 V			30 W	2	8 Ohm					Board(s)	Fully Populated	TPA3118D2	Board	Class D
