TPS54239 Series

Catalog

CONV DC-DC 4.5V TO 23V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.76V TO 7V 2A 8-PIN HSOIC EP T/R

Part	Package Name	Voltage - Input (Max)	Voltage - Input (Min)	Voltage - Output (Max)	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output	Frequency - Switching	Function	Output Configuration	Output Type	Synchronous Rectifier	Package Width	Package Length	Mounting Type	Topology	Voltage - Output (Min/Fixed)	Supplied Contents	Board Type	Total Output Count	Non-Isolated Output Count	Contents	Utilized IC / Part	Voltage - Output	Main Purpose	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Regulator Topology
Texas Instruments TPS54239DDAR	8-PowerSOIC 8-SO PowerPad	23 V	4.5 V	7 V	1	85 °C	-40 °C	2 A	600 kHz	Step-Down	Positive	Adjustable	Yes	3.9 mm	0.154 in	Surface Mount	Buck	0.76 V
Texas Instruments TPS54239EDDA	8-PowerSOIC 8-SO PowerPad	23 V	4.5 V	7 V	1	85 °C	-40 °C	2 A	600 kHz	Step-Down	Positive	Adjustable	Yes	3.9 mm	0.154 in	Surface Mount	Buck	0.76 V
Texas Instruments TPS54239EDDAR	8-PowerSOIC 8-SO PowerPad	23 V	4.5 V	7 V	1	85 °C	-40 °C	2 A	600 kHz	Step-Down	Positive	Adjustable	Yes	3.9 mm	0.154 in	Surface Mount	Buck	0.76 V
Texas Instruments TPS54239DDA	8-PowerSOIC 8-SO PowerPad	23 V	4.5 V	7 V	1	85 °C	-40 °C	2 A	600 kHz	Step-Down	Positive	Adjustable	Yes	3.9 mm	0.154 in	Surface Mount	Buck	0.76 V

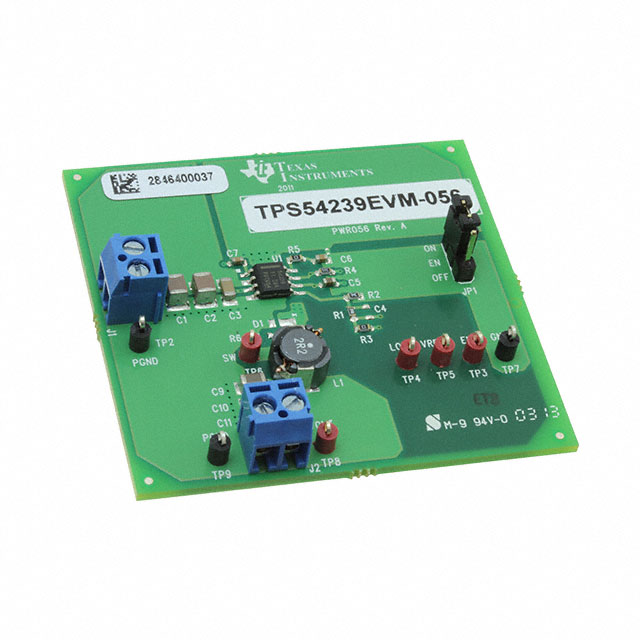

Texas Instruments TPS54239EVM-056								2 A	600 kHz			Non-Isolated							Board(s)	Fully Populated	1	1 count	Board	TPS54239	1.05 V	DC/DC Step Down	23 V	4.5 V	Buck
