AMC1336 Series
Manufacturer: Texas Instruments
Beta
⌘K

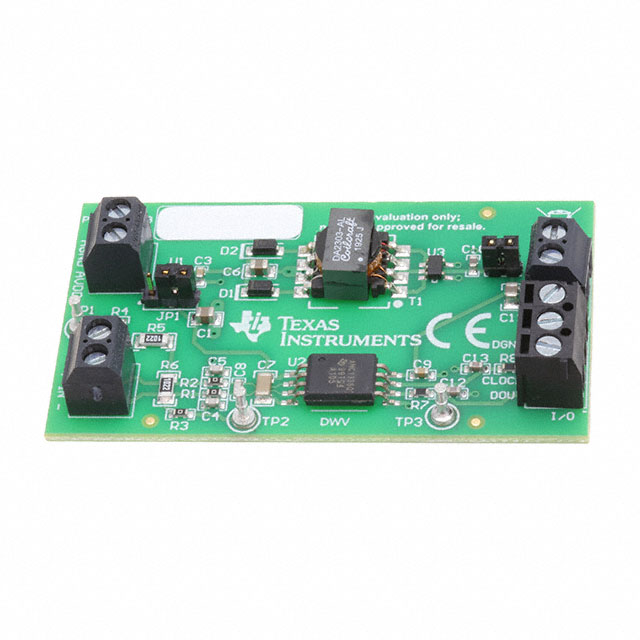

EVAL BOARD FOR AMC1336
| Part | Supplied Contents | Power (Typ) | Data Interface | Contents | Number of A/D Converters | Utilized IC / Part | Input Voltage (Max) | Input Voltage (Min) | Sampling Rate (Per Second) | Number of Bits | Number of Channels | Type | Voltage Supply Source | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 2 Maximum) | Resolution (Bits) | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Package Length | Package Name | Package Width | Qualification | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | 88 mW | Serial | Board | 1 count | AMC1336 | 1 V | -1 V | 82 kHz | 16 bits | ||||||||||||||||
 Texas Instruments | Serial | 82 kHz | 1 | Sigma-Delta Modulator | Analog Digital | 5.5 V | 3 V | 2.7 V | 5.5 V | 16 b | Surface Mount | 125 °C | -40 °C | 0.295 in | 8-SOIC | 7.5 mm | ||||||||||
Texas Instruments | Parallel | 82 kHz | 1 | Modulator | Analog Digital | 5.5 V | 3 V | 2.7 V | 5.5 V | 16 b | Surface Mount | 125 °C | -40 °C | 0.295 in | 8-SOIC | 7.5 mm | AEC-Q100 | Automotive | ||||||||
Texas Instruments | Serial | 82 kHz | 1 | Sigma-Delta Modulator | Analog Digital | 5.5 V | 3 V | 2.7 V | 5.5 V | 16 b | Surface Mount | 125 °C | -40 °C | 0.295 in | 8-SOIC | 7.5 mm |
