TM4C1230 Series

32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 32-kb RAM, CAN, 64-pin LQFP

Catalog

32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 32-kb RAM, CAN, 64-pin LQFP

Part	A/D Channels	A/D Resolution (bits)	Core Processor	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Peripherals	RAM Size Width	RAM Size Depth	Core Size (Bit Width)	Speed	Number of I/O	EEPROM Size (Depth)	EEPROM Size (Width)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Program Memory Type	Package Length	Package Name	Package Width	Connectivity	Program Memory Width	Program Memory Depth	Program Memory Size	Oscillator Type	Mounting Type	Core Configuration	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)
Texas Instruments TM4C1230H6PMI	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	32 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230D5PMIR	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	24 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	64 K	64 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230C3PMI	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	12 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	32 K	32 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230D5PMI	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	24 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	64 K	64 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230H6PMI7	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	32 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	256 K	256 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230E6PMI	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	32 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART				Internal	Surface Mount	Single-Core	128 K	128KB	8
Texas Instruments TM4C1230C3PMI7R	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	12 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	32 K	32 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230E6PMT	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	32 K	32 Bit	80 MHz	49	2 K	8 bit	105 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART				Internal	Surface Mount	Single-Core	128 K	128KB	8
Texas Instruments TM4C1230C3PMIR	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	12 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	32 K	32 KB	Internal	Surface Mount	Single-Core
Texas Instruments TM4C1230D5PMI7R	12 count	12 bit	ARM® Cortex®-M4F	3.63 V	1.08 V	Brown-out Detect DMA POR Reset WDT	8 bit	24 K	32 Bit	80 MHz	49	2 K	8 bit	85 °C	-40 °C	64-LQFP	FLASH	10 mm	64-LQFP	10 mm	CANbus I2C IrDA Microwire SPI SSI UART USART	8 bit	64 K	64 KB	Internal	Surface Mount	Single-Core

Catalog

32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 32-kb RAM, CAN, 64-pin LQFP

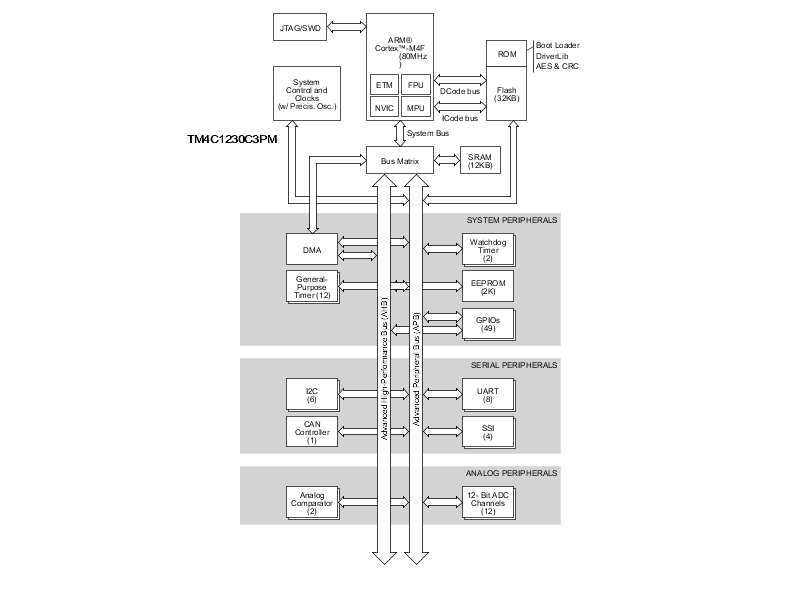

Description

The TM4C1230H6PM microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, transportation, and fire and security. The TM4C1230H6PM microcontroller is targeted for industrial applications, including remote monitoring, electronic point-of-sale machines, test and measurement equipment, network appliances and switches, factory automation, HVAC and building control, gaming equipment, transportation, and fire and security.
