IXTX1 Series

Catalog

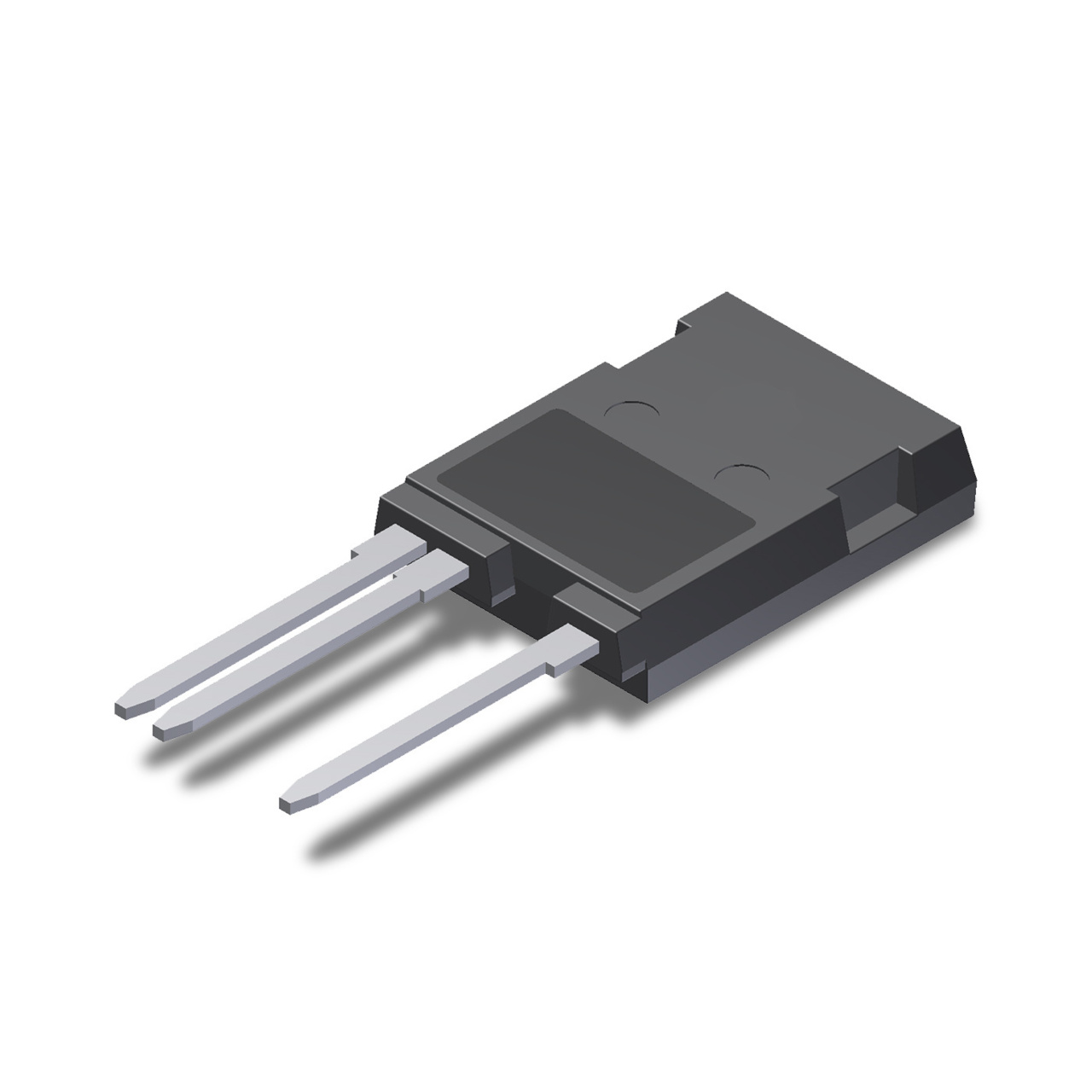

DISCMOSFET NCH STD-VERYHIVOLT TO-247AD/ TUBE

Part	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Current - Continuous Drain (Id) (Tc)	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Vgs (Max)	Package / Case	Gate Charge (Max)	Input Capacitance (Ciss) (Max)	Rds On (Max)	Vgs(th) (Max)	Power Dissipation (Max)	Technology	FET Type
LITTELFUSE IXTX1R4N450HV	4500 V	10 V	Through Hole	1.4 A	-55 °C	150 °C	TO-247PLUS-HV	20 V	TO-247-3 Variant	88 nC	3300 pF	40 Ohm	6 V	960 W	MOSFET (Metal Oxide)	N-Channel
LITTELFUSE IXTX1R4N450HV	4500 V	10 V	Through Hole	1.4 A	-55 °C	150 °C	TO-247PLUS-HV	20 V	TO-247-3 Variant	88 nC	3300 pF	40 Ohm	6 V	960 W	MOSFET (Metal Oxide)	N-Channel
