PCF8575 Series

Catalog

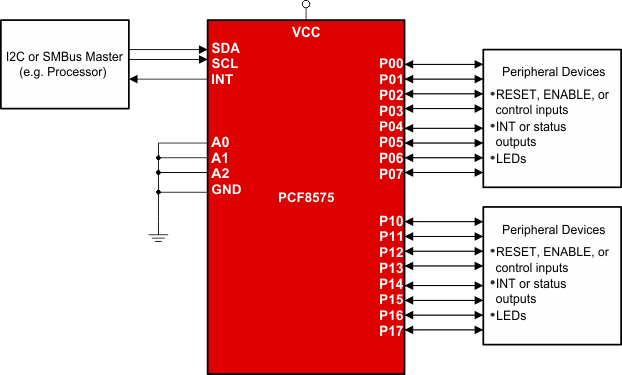

16-BIT 2.5- TO 5.5-V I2C/SMBUS I/O EXPANDER WITH INTERRUPT

Part	Clock Frequency	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Min)	Operating Temperature (Max)	Features	Package Name	Output Type	Interface	Interrupt Output	Mounting Type	Current - Output Sink	Current - Output Source	Package Length	Package Width	Number of I/O	Package / Case
Texas Instruments PCF8575DBR	400 kHz	2.5 V	5.5 V	-40 °C	85 °C	POR	24-SSOP	Push-Pull	I2C SMBus	Yes	Surface Mount	25 mA	1 mA	0.209 in	5.3 mm	16
Texas Instruments PCF8575DBQR	400 kHz	2.5 V	5.5 V	-40 °C	85 °C	POR	24-SSOP	Push-Pull	I2C SMBus	Yes	Surface Mount	25 mA	1 mA	0.154 in	3.9 mm	16
Texas Instruments PCF8575DGVR	400 kHz	2.5 V	5.5 V	-40 °C	85 °C	POR	24-TFSOP 24-TVSOP	Push-Pull	I2C SMBus	Yes	Surface Mount	25 mA	1 mA	0.173 in	4.4 mm	16
Texas Instruments PCF8575CPWR	400 kHz	4.5 V	5.5 V	-40 °C	85 °C	POR	24-TSSOP	Open Drain	I2C SMBus	Yes	Surface Mount	25 mA	10 mA	0.173 in	4.4 mm	16
Texas Instruments PCF8575CDB	400 kHz	4.5 V	5.5 V	-40 °C	85 °C	POR	24-SSOP	Open Drain	I2C SMBus	Yes	Surface Mount	25 mA	10 mA	0.209 in	5.3 mm	16
Texas Instruments PCF8575CDBR	400 kHz	4.5 V	5.5 V	-40 °C	85 °C	POR	24-SSOP	Open Drain	I2C SMBus	Yes	Surface Mount	25 mA	10 mA	0.209 in	5.3 mm	16
Texas Instruments PCF8575CDBQR	400 kHz	4.5 V	5.5 V	-40 °C	85 °C	POR	24-SSOP	Open Drain	I2C SMBus	Yes	Surface Mount	25 mA	10 mA	0.154 in	3.9 mm	16
Texas Instruments PCF8575RGER	400 kHz	2.5 V	5.5 V	-40 °C	85 °C	POR	24-VQFN	Push-Pull	I2C SMBus	Yes	Surface Mount	25 mA	1 mA	4 mm	4 mm	16	24-VFQFN Exposed Pad
Texas Instruments PCF8575PWRE4	400 kHz	2.5 V	5.5 V	-40 °C	85 °C	POR	24-TSSOP	Push-Pull	I2C SMBus	Yes	Surface Mount	25 mA	1 mA	0.173 in	4.4 mm	16
Texas Instruments PCF8575DGVRG4	400 kHz	2.5 V	5.5 V	-40 °C	85 °C	POR	24-TFSOP 24-TVSOP	Push-Pull	I2C SMBus	Yes	Surface Mount	25 mA	1 mA	0.173 in	4.4 mm	16
