CSD75208W1015 Series

Catalog

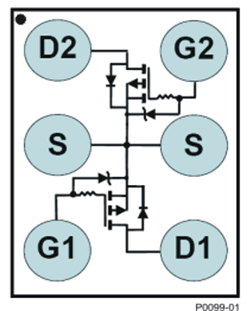

-20-V, P CHANNEL NEXFET™ POWER MOSFET, DUAL COMMON SOURCE WLP 1 MM X 1.5 MM, 108 MOHM, GATE ESD PROT

Part	Power - Max	Gate Charge (Max)	Input Capacitance (Ciss) (Max)	Package Name	Package Width	Package Length	Mounting Type	FET Feature	Vgs(th) (Max)	Package / Case	Technology	Operating Temperature (Min)	Operating Temperature (Max)	Current - Continuous Drain (Id)	Rds On (Max)	Configuration - Features	Configuration	Channel Count	Drain to Source Voltage (Vdss)
Texas Instruments CSD75208W1015T	750 mW	2.5 nC	410 pF	6-DSBGA	1.5 mm	1 mm	Surface Mount	Logic Level Gate	1.1 V	6-UFBGA DSBGA	MOSFET (Metal Oxide)	-55 °C	150 °C	1.6 A	68 mOhm	Dual	Common Source P-Channel	2	20 V
Texas Instruments CSD75208W1015	750 mW	2.5 nC	410 pF	6-DSBGA	1.5 mm	1 mm	Surface Mount	Logic Level Gate	1.1 V	6-UFBGA DSBGA	MOSFET (Metal Oxide)	-55 °C	150 °C	1.6 A	68 mOhm	Dual	Common Source P-Channel	2	20 V
