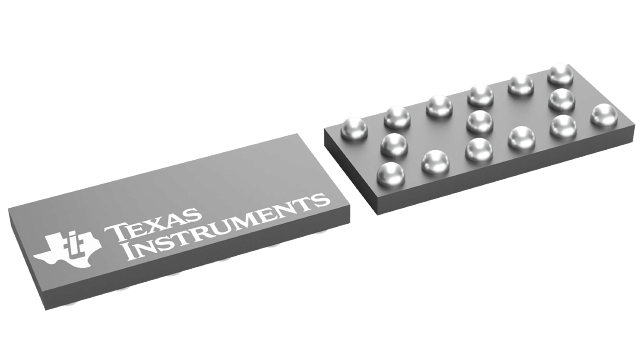

TPD6F202 Series
6 channel 5.5-V, ±25kV ESD protection & EMI Filter with 108-MHz -3-dB for LCD Display
Manufacturer: Texas Instruments
Catalog
6 channel 5.5-V, ±25kV ESD protection & EMI Filter with 108-MHz -3-dB for LCD Display
Beta
⌘K
6 channel 5.5-V, ±25kV ESD protection & EMI Filter with 108-MHz -3-dB for LCD Display
6 channel 5.5-V, ±25kV ESD protection & EMI Filter with 108-MHz -3-dB for LCD Display
6 channel 5.5-V, ±25kV ESD protection & EMI Filter with 108-MHz -3-dB for LCD Display
| Part | Applications | Operating Temperature (Min) | Operating Temperature (Max) | Height | Attenuation Value | Number of Channels | Type | Mounting Type | ESD Protection | Filter Order | Technology | Package / Case | Cutoff Frequency | Resistance - Channel (Ohms) | Capacitance | Resistance | Size / Dimension Length | Size / Dimension Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Data Lines for Mobile Devices | -40 °C | 85 °C | 0.014 in | 40 dB | 6 | Low Pass | Surface Mount | Yes | 2 | RC (Pi) | 15-XFBGA DSBGA | 108 MHz | 100 Ohm | 15 pF | 100 Ohms | 0.041 in | 0.093 in |
