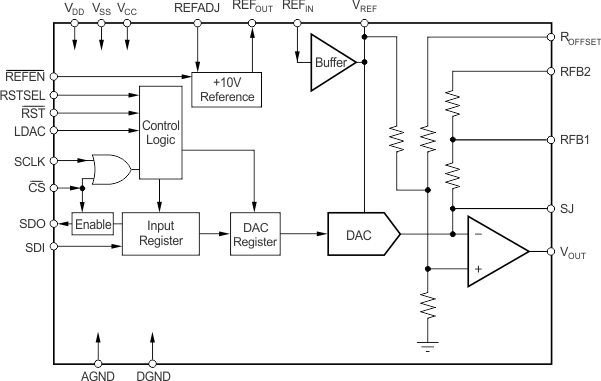

DAC7731 Series

Catalog

IC DAC 16BIT V-OUT 24SSOP

Part	Package Length	Package Name	Package Width	Reference Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Digital	Settling Time	Number of D/A Converters	Data Interface	Mounting Type	Architecture	Number of Bits	DNL (Max) (LSB)	INL (Max) (LSB)	Output Type	Differential Output	Voltage - Supply, Analog (Negative Min)	Voltage - Supply, Analog (Negative Max)	Voltage - Supply, Analog (Positive Max)	Voltage - Supply, Analog (Positive Min)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Min)	Voltage - Supply, Analog (Range 1 Max)	Supplied Contents	Number of DAC's	DAC Type	Contents	Utilized IC / Part
Texas Instruments DAC7731EG4	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	4 LSB	6 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731EC/1K	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	1 LSB	3 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731E	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	4 LSB	6 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731EB/1K	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	2 LSB	4 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731ECG4	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	1 LSB	3 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731EB	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	2 LSB	4 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731EVM								3 µs		SPI			16 bits													Board(s)	1	Voltage	Board	DAC7731
Texas Instruments DAC7731EC	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	1 LSB	3 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731EB	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	2 LSB	4 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
Texas Instruments DAC7731E/1K	0.209 in	24-SSOP	5.3 mm	External Internal	-40 °C	85 °C	5 V	5 µs	1 count	SPI	Surface Mount	R-2R	16 bits	4 LSB	6 LSB	Voltage - Buffered	No	-15.75 V	-4.75 V	15.75 V	11.4 V	-15.75 V -4.75 V	-15.75 V -4.75 V	-11.4 V 11.4 V	15.75 V
