TPS43332 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE 2V TO 40V SINGLE BOOST & DUAL SYNCHRONOUS BUCK CONTROLLER WITH FREQ. SPREAD SPECTRUM
| Part | Mounting Type | Control Features | Output Configuration | Synchronous Rectifier | Qualification | Package Name | Package Length | Package Width | Voltage - Supply (Vcc/Vdd) Minimum | Voltage - Supply (Vcc/Vdd) Maximum | Duty Cycle (Max) | Grade | Output Type | Topology | Output Phases | Frequency - Switching (Min) | Frequency - Switching (Max) | Number of Outputs | Clock Sync | Function | Operating Temperature (Max) | Operating Temperature (Min) | Total Output Count | Non-Isolated Output Count | Supplied Contents | Board Type | Main Purpose | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Utilized IC / Part | Contents | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | Enable Frequency Control Power Good Soft Start Tracking | Positive | Yes | AEC-Q100 | 38-HTSSOP 38-PowerTSSOP | 0.24 in | 6.1 mm | 4 V | 40 V | 90% 98.75% | Automotive | Transistor Driver | Boost Buck | 2 | 150 kHz | 600 kHz | 3 | Yes | Step-Down Step-Up | 125 °C | -40 °C | ||||||||||

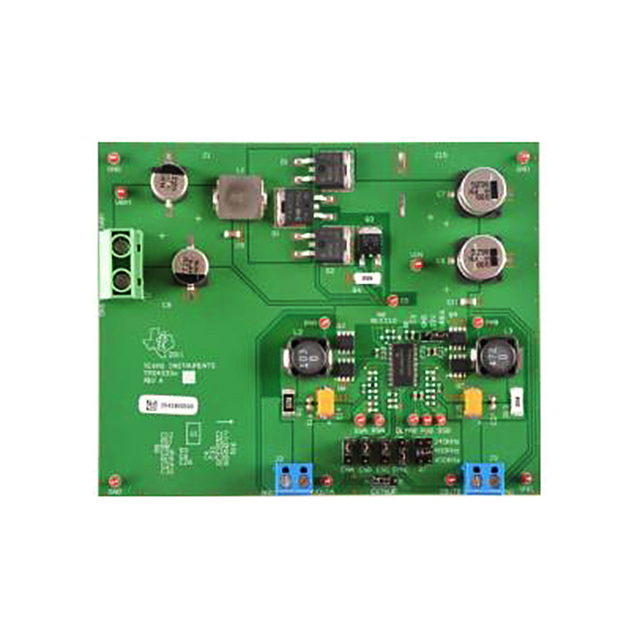

 Texas Instruments | Non-Isolated | 150 kHz | 600 kHz | 1 | 1 count | Board(s) | Fully Populated | DC/DC Step Up or Down | 40 V | 2 V | TPS43332 | Board | Buck-Boost |
