ADC124S101 Series

Catalog

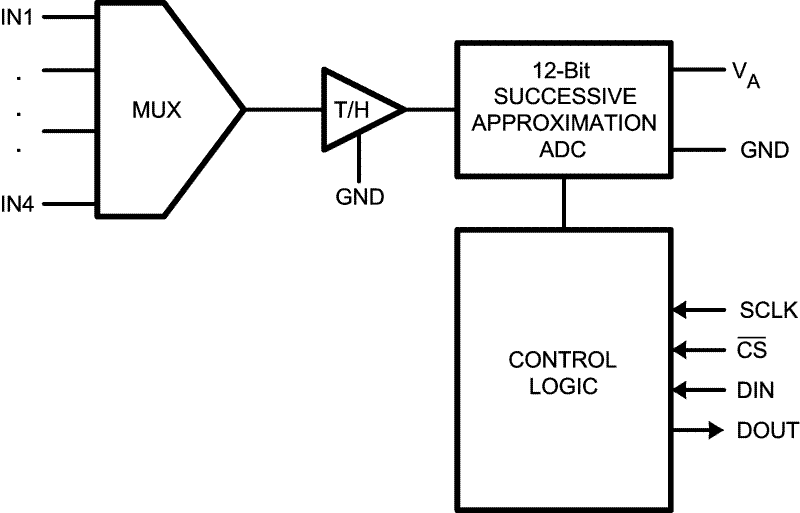

4 CHANNEL, 500 KSPS TO 1 MSPS, 12-BIT A/D CONVERTER

Part	Mounting Type	Reference Type	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Number of A/D Converters	Architecture	Number of Inputs	Package Length	Package Name	Package Width	Ratio - ADC	Ratio - S/H	Configuration	Operating Temperature (Min)	Operating Temperature (Max)	Sampling Rate (Per Second)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Data Interface	Number of Bits	Input Type
Texas Instruments ADC124S101CIMMX/NOPB	Surface Mount	Supply	5.25 V	2.7 V	1 count	SAR	4	0.118 in	10-MSOP 10-TFSOP 10-VSSOP	3 mm	1	1	MUX-S/H-ADC	-40 °C	85 °C	1 MHz	2.7 V	5.25 V	DSP SPI	12 bits	Single Ended
Texas Instruments ADC124S101CIMM/NOPB	Surface Mount	Supply	5.25 V	2.7 V	1 count	SAR	4	0.118 in	10-MSOP 10-TFSOP 10-VSSOP	3 mm	1	1	MUX-S/H-ADC	-40 °C	85 °C	1 MHz	2.7 V	5.25 V	DSP SPI	12 bits	Single Ended
