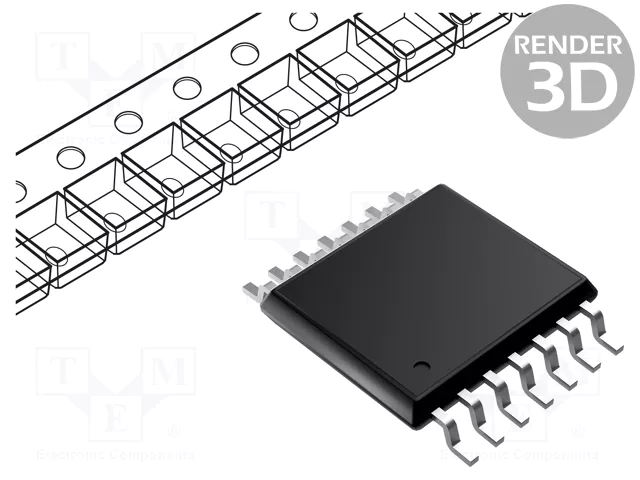

SN74AHC86 Series

Catalog

4-CH 2-INPUT 2-V TO 5.5-V XOR (EXCLUSIVE OR) GATES

Part	Input Logic Level - High (Max)	Input Logic Level - High (Min)	Input Logic Level - Low (Max)	Input Logic Level - Low (Min)	Number of Inputs	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Quiescent (Max)	Current - Output Low	Current - Output High	Package Width	Package Name	Package Length	Max CL	Max Propagation Delay	Logic Type	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Circuits	Package / Case
Texas Instruments SN74AHC86PW	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	4.4 mm	14-TSSOP	0.173 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
Texas Instruments SN74AHC86DBR	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	5.3 mm	14-SSOP	0.209 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
Texas Instruments SN74AHC86DR	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	3.9 mm	14-SOIC	0.154 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
Texas Instruments SN74AHC86RGYR	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	3.5 mm	14-VQFN	3.5 mm	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4	14-VFQFN Exposed Pad
Texas Instruments SN74AHC86DGVR	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	4.4 mm	14-TFSOP 14-TVSOP	0.173 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
Texas Instruments SN74AHC86BQAR	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	2.5 mm	14-WQFN	3 mm	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4	14-WFQFN Exposed Pad
Texas Instruments SN74AHC86D	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	3.9 mm	14-SOIC	0.154 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
Texas Instruments SN74AHC86PWR	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	4.4 mm	14-TSSOP	0.173 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
Texas Instruments SN74AHC86N	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	7.62 mm	14-DIP 14-PDIP	0.3 in	50 pF	8.8 ns	XOR (Exclusive OR)	Through Hole	125 °C	-40 °C	4
Texas Instruments SN74AHC86PWRG4	3.85 V	1.5 V	1.65 V	0.5 V	2	5.5 V	2 V	2 µA	8 mA	8 mA	4.4 mm	14-TSSOP	0.173 in	50 pF	8.8 ns	XOR (Exclusive OR)	Surface Mount	125 °C	-40 °C	4
