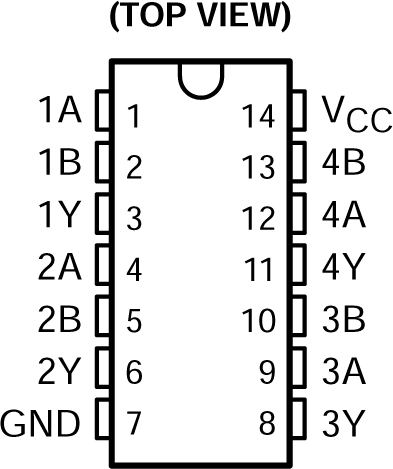

CD74AC08 Series
4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate
Manufacturer: Texas Instruments
Catalog
4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate
Beta
⌘K
4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate
4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate
4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate
| Part | Package Width | Package Name | Package Length | Input Logic Level - Low (Max) | Input Logic Level - Low (Min) | Current - Output Low | Current - Output High | Current - Quiescent (Max) | Logic Type | Max Propagation Delay | Max CL | Input Logic Level - High (Max) | Input Logic Level - High (Min) | Number of Circuits | Mounting Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Operating Temperature (Max) | Operating Temperature (Min) | Number of Inputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3.9 mm | 14-SOIC | 0.154 in | 1.65 V | 0.3 V | 24 mA | 24 mA | 4 µA | AND Gate | 8.7 ns | 50 pF | 3.85 V | 1.2 V | 4 | Surface Mount | 5.5 V | 1.5 V | 125 °C | -55 °C | 2 |
