LM35 Series

Catalog

BOARD MOUNT TEMPERATURE SENSORS 1C HIGH VOLTAGE ANAL OG TEMPERATURE SENSO A 926-LM35DH/NOPB

Part	Output Type	Package Name	Sensor Type	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Sensing Temperature - Local (Max)	Sensing Temperature - Local (Min)	Mounting Type	Accuracy - Highest (Lowest)	Operating Temperature (Max)	Operating Temperature (Min)	Test Condition	Resolution	Test Condition (Max)	Test Condition Temperature	Test Condition (Min)	Accuracy - Lowest	Accuracy - Highest	Package Length	Package Width

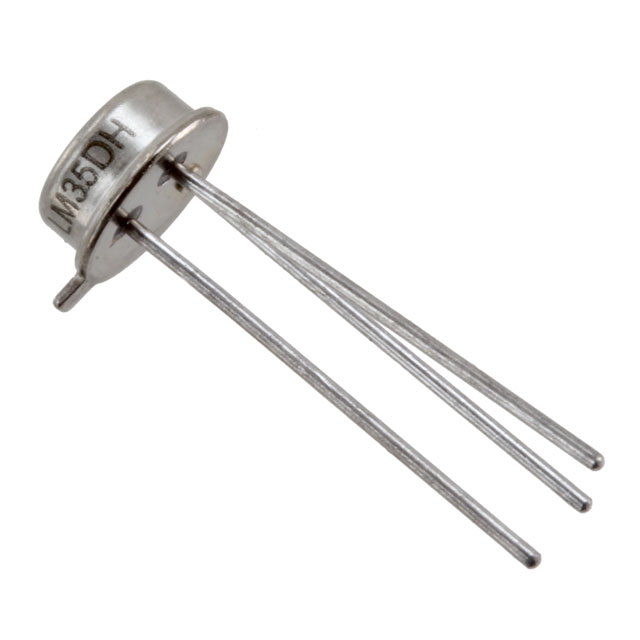

Texas Instruments LM35DH	Analog Voltage	TO-46-3	Analog Local	TO-206AB TO-46-3 Metal Can	30 VDC	4 V	70 °C	0 °C	Through Hole	1.5 °C	70 °C	0 °C	77 °F	10 mV/°C
Texas Instruments LM35CH/NOPB	Analog Voltage	TO-46-3	Analog Local	TO-206AB TO-46-3 Metal Can	30 VDC	4 V	230 °F	-40 °C	Through Hole	1 °C	110 °C	-40 °C	77 °F	10 mV/°C
Texas Instruments LM35CAZ/NOPB	Analog Voltage	TO-92-3	Analog Local	TO-226-3 TO-92-3 (TO-226AA)	30 VDC	4 V	230 °F	-40 °C	Through Hole		110 °C	-40 °C		10 mV/°C	110 °C	25 °C	-40 °C	1 °C	0.5 °C
Texas Instruments LM35CAZ/LFT4	Analog Voltage	TO-92-3	Analog Local	TO-226-3 TO-92-3 (TO-226AA)	30 VDC	4 V	230 °F	-40 °C	Through Hole		110 °C	-40 °C		10 mV/°C	110 °C	25 °C	-40 °C	1 °C	0.5 °C
Texas Instruments LM35DMX/NOPB	Analog Voltage	8-SOIC	Analog Local		30 VDC	4 V	212 °F	0 °C	Surface Mount	1.5 °C	100 °C	0 °C	77 °F	10 mV/°C						0.154 in	3.9 mm
Texas Instruments LM35CAH/NOPB	Analog Voltage	TO-46-3	Analog Local	TO-206AB TO-46-3 Metal Can	30 VDC	4 V	230 °F	-40 °C	Through Hole		110 °C	-40 °C		10 mV/°C	110 °C	25 °C	-40 °C	1 °C	0.5 °C
Texas Instruments LM35DZ/NOPB	Analog Voltage	TO-92-3	Analog Local	TO-226-3 TO-92-3 (TO-226AA)	30 VDC	4 V	212 °F	0 °C	Through Hole	1.5 °C	100 °C	0 °C	77 °F	10 mV/°C
Texas Instruments LM35H	Analog Voltage	TO-46-3	Analog Local	TO-206AB TO-46-3 Metal Can	30 VDC	4 V	150 °C	-55 °C	Through Hole		150 °C	-55 °C	25 °C	10 mV/°C				1.5 °C	1 °C
Texas Instruments LM35DZ/LFT4	Analog Voltage	TO-92-3	Analog Local	TO-226-3 TO-92-3 (TO-226AA)	30 VDC	4 V	212 °F	0 °C	Through Hole	1.5 °C	100 °C	0 °C	77 °F	10 mV/°C
Texas Instruments LM35DZ/LFT1	Analog Voltage	TO-92-3	Analog Local	TO-226-3 TO-92-3 (TO-226AA)	30 VDC	4 V	212 °F	0 °C	Through Hole	1.5 °C	100 °C	0 °C	77 °F	10 mV/°C
