LP3971 Series

Power Management IC (PMIC) for Advanced Application Processors

Catalog

Power Management IC (PMIC) for Advanced Application Processors

Part	Package Width	Package Name	Package Length	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Current - Supply	Applications
Texas Instruments LP3971SQ-B410	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQ-F211	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQ-7848/NOPB	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQX-U511/NOPB	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQE-7848/NOPB	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQX-W416/NOPB	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQ-U511/NOPB	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQ-B410	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQ-O509/NOPB	5 mm	40-WQFN	5 mm	Surface Mount	5.5 V	2.7 V	40-WFQFN Exposed Pad	-40 °C	85 °C	60 µA	Processor
Texas Instruments LP3971SQ-D510/NOPB

Catalog

Power Management IC (PMIC) for Advanced Application Processors

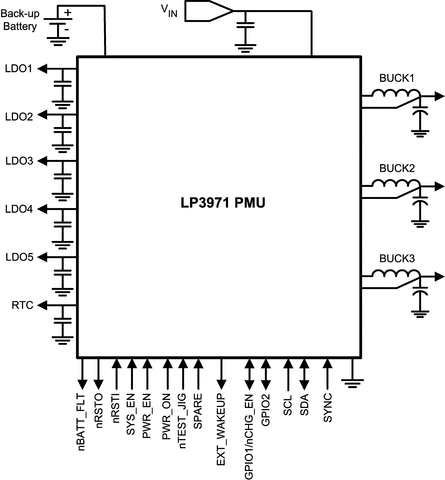

Description
