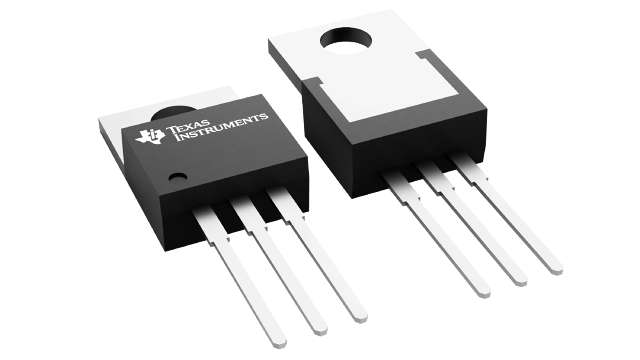

LM1084 Series
Manufacturer: Texas Instruments
Beta
⌘K
5.5-A, 29-V, LINEAR VOLTAGE REGULATOR
| Part | Voltage - Output (Min/Fixed) | Output Configuration | Voltage Dropout (Max) | Package Name | Number of Regulators | Current - Output | Package / Case | Output Type | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (Max) | Protection Features | PSRR | Mounting Type | Current - Quiescent (Iq) | Voltage - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3.3 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Fixed | 125 °C | -40 °C | 27 V | Over Current Over Temperature | 72 dB | Surface Mount | 10 mA | |
 Texas Instruments | 1.25 V | Positive | 1.5 V | TO-220-3 | 1 | 5 A | TO-220-3 | Adjustable | 125 °C | -40 °C | 29 V | Over Current Over Temperature | 75 dB | Through Hole | 10 mA | 27.5 V |
 Texas Instruments | 12 V | Positive | 1.5 V | TO-220-3 | 1 | 5 A | TO-220-3 | Fixed | 125 °C | -40 °C | 18 V | Over Current Over Temperature | 60 dB | Through Hole | 10 mA | |
Texas Instruments | 1.25 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Adjustable | 125 °C | -40 °C | 29 V | Over Current Over Temperature | 75 dB | Surface Mount | 10 mA | 27.5 V |
Texas Instruments | 1.25 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Adjustable | 125 °C | -40 °C | 29 V | Over Current Over Temperature | 75 dB | Surface Mount | 10 mA | 27.5 V |
Texas Instruments | 5 V | Positive | 1.5 V | TO-220-3 | 1 | 5 A | TO-220-3 | Fixed | 125 °C | -40 °C | 25 V | Over Current Over Temperature | 68 dB | Through Hole | 10 mA | |
 Texas Instruments | 1.25 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Adjustable | 125 °C | -40 °C | 29 V | Over Current Over Temperature | 75 dB | Surface Mount | 10 mA | 27.5 V |
Texas Instruments | 5 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Fixed | 125 °C | -40 °C | 25 V | Over Current Over Temperature | 68 dB | Surface Mount | 10 mA | |
Texas Instruments | 5 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Fixed | 125 °C | -40 °C | 25 V | Over Current Over Temperature | 68 dB | Surface Mount | 10 mA | |
Texas Instruments | 12 V | Positive | 1.5 V | TO-263 (DDPAK-3) | 1 | 5 A | D2PAK (3 Leads + Tab) TO-263-4 TO-263AA | Fixed | 125 °C | -40 °C | 18 V | Over Current Over Temperature | 60 dB | Surface Mount | 10 mA |
