ADSP-21061L Series

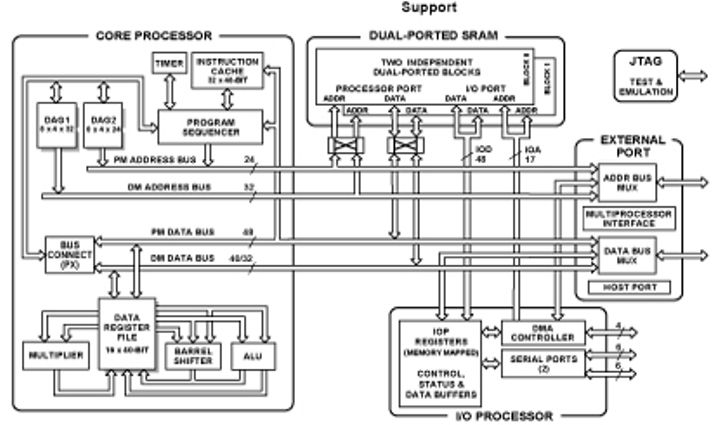

The ADSP-21061L is the newest member of the powerful SHARC®family of floating point processors. The SHARC®are signal processing microcomputers that offer new capabilities and levels of integration and performance. The ADSP-21061L is the low power (3.3 volt) version of the ADSP-21061. The ADSP-21061L is a 32-bit processor optimized for high performance DSP applications. The ADSP-21061L combines the ADSP-21000 DSP core with a dual-ported on-chip SRAM and an I/O processor with a dedicated I/O bus to form a complete system-in-a-chip.Fabricated in a high-speed, low-power CMOS process, the ADSP-21061L has a 25 ns instruction cycle time operating at 40 MIPS. With its on-chip instruction cache, the processor can execute every instruction in a single cycle.The ADSP-21061L SHARC combines a high-performance floating-point DSP core with integrated, on-chip system features, including a 1 Mbit SRAM memory, host processor interface, DMA controller, serial ports and parallel bus connectivity for glueless DSP multiprocessing.
