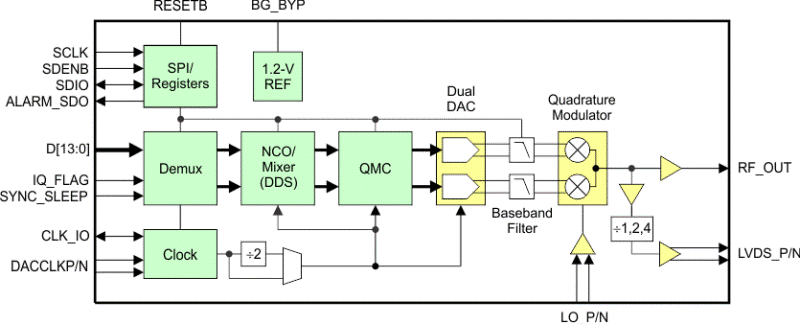

AFE7070 Series

Catalog

EVAL MODULE FOR AFE7070

Part	Supplied Contents	DAC Type	Contents	Sampling Rate (Per Second)	Number of Bits	Data Interface	Utilized IC / Part	Number of DAC's	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Output Type	Package / Case	Reference Type	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 1 Min)	Differential Output	Package Length	Package Name	Package Width	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of D/A Converters
Texas Instruments AFE7070EVM	Board(s)	Voltage	Board	65 MHz	14 bits	SPI	AFE7070	2
Texas Instruments AFE7070IRGZT					14 bits	Parallel			1.89 V	1.71 V	Voltage - Buffered	48-VFQFN Exposed Pad	Internal	3.15 V	3.45 V	1.89 V	1.71 V	No	7 mm	48-VQFN	7 mm	Surface Mount	-40 °C	85 °C	2 count
Texas Instruments AFE7070IRGZ25					14 bits	Parallel			1.89 V	1.71 V	Voltage - Buffered	48-VFQFN Exposed Pad	Internal	3.15 V	3.45 V	1.89 V	1.71 V	No	7 mm	48-VQFN	7 mm	Surface Mount	-40 °C	85 °C	2 count
Texas Instruments AFE7070IRGZR					14 bits	Parallel			1.89 V	1.71 V	Voltage - Buffered	48-VFQFN Exposed Pad	Internal	3.15 V	3.45 V	1.89 V	1.71 V	No	7 mm	48-VQFN	7 mm	Surface Mount	-40 °C	85 °C	2 count
