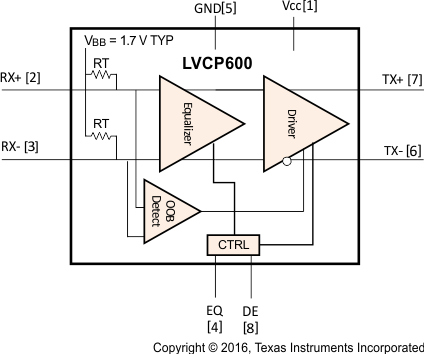

1.5/3.0/6.0-Gbps single channel SATA/SAS redriver

Part	Applications	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Delay Time	Input	Data Rate (Max)	Number of Channels	Mounting Type	Current - Supply	Output	Signal Conditioning	Package Name	Package Width	Package Length	Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case
Texas Instruments SN75LVCP600SDSKT	SAS SATA	3.6 V	3 V	280 ps	CML	6 Gbps	1	Surface Mount	32 mA	CML	Input Equalization Output De-Emphasis	10-SON	2.5 mm	2.5 mm	Buffer ReDriver	-40 °C	85 °C	10-WFDFN Exposed Pad
Texas Instruments SN75LVCP600DRFR	SATA	3.6 V	3 V	275 ps	VML	6 Gbps	1	Surface Mount	29 mA	VML	Input Equalization Output De-Emphasis	8-WSON	2 mm	2 mm	Buffer ReDriver	0 °C	85 °C	8-WFDFN Exposed Pad
Texas Instruments SN75LVCP600SDSKR	SAS SATA	3.6 V	3 V	280 ps	CML	6 Gbps	1	Surface Mount	32 mA	CML	Input Equalization Output De-Emphasis	10-SON	2.5 mm	2.5 mm	Buffer ReDriver	-40 °C	85 °C	10-WFDFN Exposed Pad
