LM63615 Series

Catalog

3.5-V TO 36-V, 1.5-A STEP-DOWN VOLTAGE CONVERTER WITH SPREAD SPECTRUM

Part	Voltage - Output (Max)	Output Configuration	Number of Outputs	Current - Output	Package Name	Package Length	Package Width	Qualification	Mounting Type	Frequency - Switching	Grade	Voltage - Output (Min/Fixed)	Voltage - Input (Max)	Function	Topology	Voltage - Input (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	Synchronous Rectifier	Package / Case	Board Type	Supplied Contents	Total Output Count	Non-Isolated Output Count	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Voltage - Output (Min)	Main Purpose	Regulator Topology	Utilized IC / Part	Contents	Frequency - Switching (Max)	Frequency - Switching (Min)
Texas Instruments LM63615DQPWPRQ1	20 V	Positive	1	1.5 A	16-HTSSOP 16-PowerTSSOP	0.173 in	4.4 mm	AEC-Q100	Surface Mount	2.1 MHz 400 kHz	Automotive	1 V	36 V	Step-Down	Buck	3.5 V	-40 °C	150 °C	Adjustable	Yes
Texas Instruments LM63615CAQDRRRQ1	20 V	Positive	1	1.5 A	12-WSON	3 mm	3 mm	AEC-Q100	Surface Mount Wettable Flank	2.1 MHz	Automotive	1 V	36 V	Step-Down	Buck	3.5 V	-40 °C	150 °C	Adjustable	Yes	12-WFDFN Exposed Pad

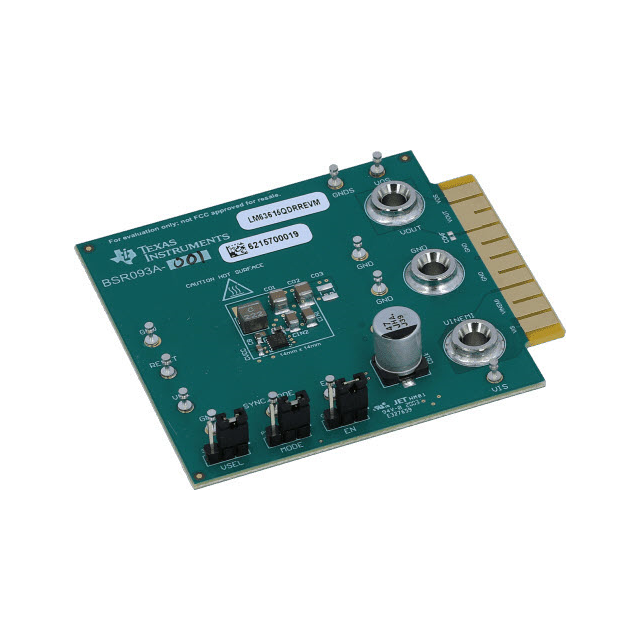

Texas Instruments LM63615QDRREVM	5 V			1.5 A						2.1 MHz									Non-Isolated			Fully Populated	Board(s)	1	1 count	3.5 V	36 V	3.3 V	DC/DC Step Down	Buck	LM63615-Q1	Board
Texas Instruments LM63615DQDRRRQ1	20 V	Positive	1	1.5 A	12-WSON	3 mm	3 mm	AEC-Q100	Surface Mount Wettable Flank		Automotive	1 V	36 V	Step-Down	Buck	3.5 V	-40 °C	150 °C	Adjustable	Yes	12-WFDFN Exposed Pad												2.2 MHz	250 kHz
