CD54ACT574 Series

Non-Inverting Octal D-Type Flip-Flops with 3-State Outputs

Catalog

Non-Inverting Octal D-Type Flip-Flops with 3-State Outputs

Part	Type	Trigger Type	Package Name	Clock Frequency	Number of Elements	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current - Output Low	Current - Output High	Number of Bits per Element	Package Length	Package Width	Max Propagation Delay	Max CL	Output Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Input Capacitance	Current - Quiescent (Iq)	Function
Texas Instruments CD54ACT574F3A	D-Type	Positive Edge	20-CDIP	110 MHz	1	125 °C	-55 °C	Through Hole	24 mA	24 mA	8 bits	0.3 in	7.62 mm	11.2 ns	50 pF	Non-Inverted Tri-State	5.5 V	4.5 V	10 pF	8 µA	Standard

Catalog

Non-Inverting Octal D-Type Flip-Flops with 3-State Outputs

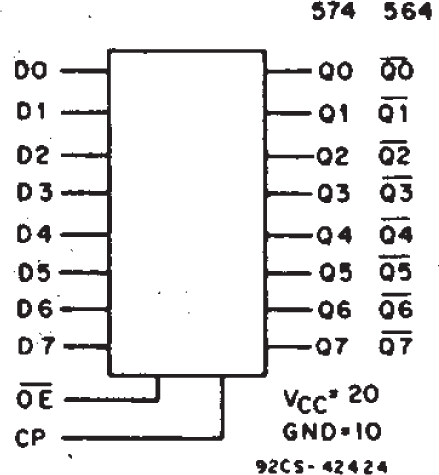

Description

The CDx4AC574 and the CDx4ACT574 octal D-type, 3-state, positive-edge-triggered flip-flops use the RCA ADVANCED CMOS technology. The CDx4AC574 and the CDx4ACT574 octal D-type, 3-state, positive-edge-triggered flip-flops use the RCA ADVANCED CMOS technology.
