74HC164 Series

High Speed CMOS Logic 8-Bit Serial-In/Parallel-Out Shift Register

Catalog

High Speed CMOS Logic 8-Bit Serial-In/Parallel-Out Shift Register

Part	Operating Temperature (Max)	Operating Temperature (Min)	Function	Number of Elements	Package Name	Logic Type	Number of Bits per Element	Package Width	Package Length	Output Type	Mounting Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Texas Instruments CD74HC164M96G4	125 °C	-55 °C	Serial to Parallel	1	14-SOIC	Shift Register	8 bits	3.9 mm	0.154 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments SN74HC164PWRE4	125 °C	-40 °C	Serial to Parallel	1	14-TSSOP	Shift Register	8 bits	4.4 mm	0.173 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments SN74HC164NE4	125 °C	-40 °C	Serial to Parallel	1	14-DIP 14-PDIP	Shift Register	8 bits	7.62 mm	0.3 in	Push-Pull	Through Hole	2 V	6 V
Texas Instruments SN74HC164NS	125 °C	-40 °C	Serial to Parallel	1	14-SO 14-SOIC	Shift Register	8 bits	5.3 mm	0.209 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments SN74HC164N	125 °C	-40 °C	Serial to Parallel	1	14-DIP 14-PDIP	Shift Register	8 bits	7.62 mm	0.3 in	Push-Pull	Through Hole	2 V	6 V
Texas Instruments SN74HC164DRG3	125 °C	-40 °C	Serial to Parallel	1	14-SOIC	Shift Register	8 bits	3.9 mm	0.154 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments SN74HC164PW	125 °C	-40 °C	Serial to Parallel	1	14-TSSOP	Shift Register	8 bits	4.4 mm	0.173 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments CD74HC164MT	125 °C	-55 °C	Serial to Parallel	1	14-SOIC	Shift Register	8 bits	3.9 mm	0.154 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments SN74HC164NSR	125 °C	-40 °C	Serial to Parallel	1	14-SO 14-SOIC	Shift Register	8 bits	5.3 mm	0.209 in	Push-Pull	Surface Mount	2 V	6 V
Texas Instruments CD74HC164ME4	125 °C	-55 °C	Serial to Parallel	1	14-SOIC	Shift Register	8 bits	3.9 mm	0.154 in	Push-Pull	Surface Mount	2 V	6 V

Catalog

High Speed CMOS Logic 8-Bit Serial-In/Parallel-Out Shift Register

Description

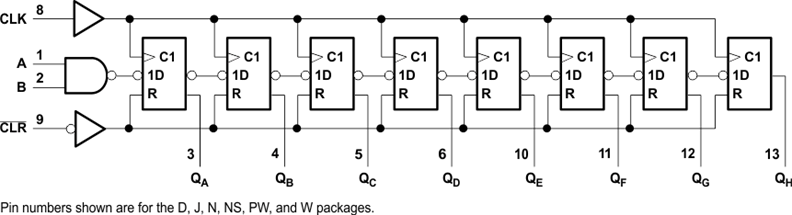

The ’HC164 and ’HCT164 are 8-bit, serial-in, parallel-out, shift registers with asynchronous reset. Data is shifted on the positive edge of Clock (CLK). A LOW on the RESET (CLR) pin resets the shift register and all outputs go to the LOW state regardless of the input conditions. Two Serial Data inputs (A and B) are provided, either one can be used as a data enable control. The ’HC164 and ’HCT164 are 8-bit, serial-in, parallel-out, shift registers with asynchronous reset. Data is shifted on the positive edge of Clock (CLK). A LOW on the RESET (CLR) pin resets the shift register and all outputs go to the LOW state regardless of the input conditions. Two Serial Data inputs (A and B) are provided, either one can be used as a data enable control.
