ADC12D800 Series

12-Bit, Dual 800-MSPS or Single 1.6-GSPS, RF Sampling Analog-to-Digital Converter (ADC)

Catalog

12-Bit, Dual 800-MSPS or Single 1.6-GSPS, RF Sampling Analog-to-Digital Converter (ADC)

Part	Ratio - ADC	Ratio - S/H	Features	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package Name	Package Length	Package Width	Sampling Rate (Per Second)	Package / Case	Data Interface	Number of Bits	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Reference Type	Configuration	Number of A/D Converters	Mounting Type	Number of Inputs	Operating Temperature (Min)	Operating Temperature (Max)	Architecture	Input Type
Texas Instruments ADC12D800RFIUT/NOPB	1	1	Simultaneous Sampling	1.8 V	2 V	292-BGA	27 mm	27 mm	1.6 GHz	292-BBGA	LVDS - Parallel	12 bits	2 V	1.8 V	Internal	MUX-S/H-ADC	2 count	Surface Mount	2	-40 °C	85 °C	Folding Interpolating	Differential

Catalog

12-Bit, Dual 800-MSPS or Single 1.6-GSPS, RF Sampling Analog-to-Digital Converter (ADC)

Description

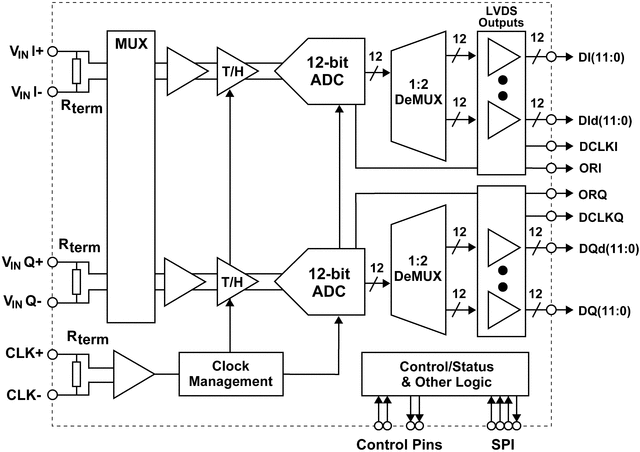

The 12-bit 1.6/1.0 GSPS ADC12D800/500RF is an RF-sampling GSPS ADC that can directly sample input frequencies up to and above 2.7 GHz. The ADC12D800/500RF augments the very large Nyquist zone of TI’s GSPS ADCs with excellent noise and linearity performance at RF frequencies, extending its usable range beyond the 7thNyquist zone The ADC12D800/500RF provides a flexible LVDS interface which has multiple SPI programmable options to facilitate board design and FPGA/ASIC data capture. The LVDS outputs are compatible with IEEE 1596.3-1996 and supports programmable common mode voltage. The product is packaged in a lead-free 292-ball thermally enhanced BGA package over the rated industrial temperature range of -40°C to +85°C. The 12-bit 1.6/1.0 GSPS ADC12D800/500RF is an RF-sampling GSPS ADC that can directly sample input frequencies up to and above 2.7 GHz. The ADC12D800/500RF augments the very large Nyquist zone of TI’s GSPS ADCs with excellent noise and linearity performance at RF frequencies, extending its usable range beyond the 7thNyquist zone The ADC12D800/500RF provides a flexible LVDS interface which has multiple SPI programmable options to facilitate board design and FPGA/ASIC data capture. The LVDS outputs are compatible with IEEE 1596.3-1996 and supports programmable common mode voltage. The product is packaged in a lead-free 292-ball thermally enhanced BGA package over the rated industrial temperature range of -40°C to +85°C.
